Stamixco - Model GXP -Disposable Mixer with X-Grid

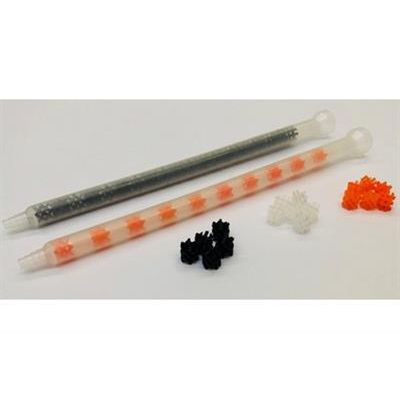

The GXP plastic disposable static mixer is available in a 9.4mm diameter in 50% glass filled Nylon PA66 and Polypropylene construction. The GXP is used for difficult meter-mix-dispense applications. Standard plastic housings are available with 20 mixing elements. Also available are special high pressure plastic housings that hold 6 mixing elements with a maximum operating pressure of 100 bar. These plastic housings can be connected in series via ring fittings M18 x 1.5mm.
