MARK - Model MARK-1402 -Dissolved oxygen meter with sterilizable and autoclavable sensor
FromVZOR

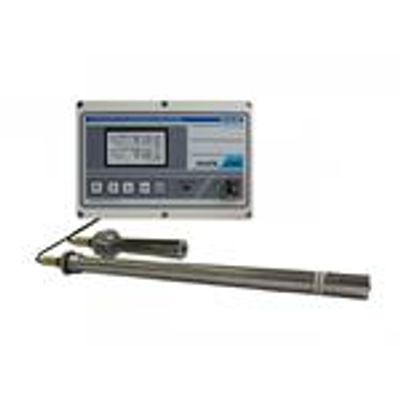

MARK-1402 - Dissolved oxygen meter with sterilizable and autoclavable sensor.
Lifetime of the oxygen sensor is min. 10 years.
2 galvanic isolated current outputs 0–5/4–20/0–20mA.
RS-485 galvanic isolated port. MODBUS RTU.
2 measuring channels.Most popular related searches
dissolved oxygen meter
oxygen meter
dissolved oxygen analyzer
dissolved oxygen sensor
oxygen analyzer
oxygen sensor
autoclave
temperature monitoring
|
Measuring range |
Resolution |
Accuracy | |
|---|---|---|---|
|
DO concentration, ppm |
0-30 |
0,0001 |
±(0,05+4% of measured value) |
|
Temperature, °C |
0-70 |
0,1 |
±0,3 |
|
sensor sterilization conditions |
|||
|
Temperature, °C |
+132 | ||
|
Dimensions, mm |
266*170*95 |
252*146*100 |
|
Basic kit:
- Converting unit
- DO sensor DKS-1 or DKS-2 with 5 meter cable
- Spare parts kit
- Electrolyte
Optionally:
- DO sensor OS-1 or OS-2 for the second channel
- Extension cable up to 95 m
- Gateway device
