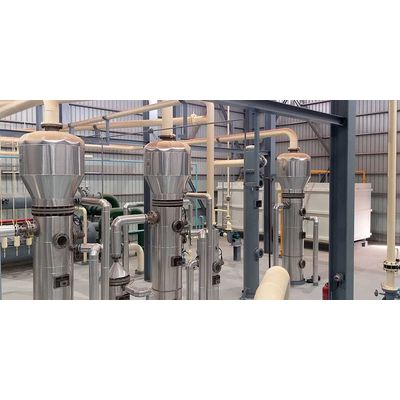

Kumar - Distillation Plant

Distillation is carried out in three stages of vacuum. Thereby achieving incremental concentration of miscella at predetermined rate. Further more each stage is differentiated by incorporation of precisely designed U type siphon pipe, eliminating the use of centrifugal pump. This ensures continuous flow of miscella & reduces power consumption. Economizer is specially designed having built in flasher, which provides the compact design, Minimum plant space and reduction in unwanted piping. This design itself provides the high efficiency flashing which increase the miscella concentration up to 75%. The final stage striping is carried out in presence of steam under higher vacuum of 700 mmHg. This allows to lower temperature in distillation and thereby ensuring undamaged crude oil without color fixation.
