Model RDL//Client-THR -Distributed Measurement System
The RDL//Client-THR is a distributed measurement system ideally suited for monitoring of building material moisture content levels. The product is hardwired and multi dropped so battery life is not an issue for systems which are embedded into the fabric of buildings. All measurement nodes can be hardwired back to a single RDL//Nano which automatically transmits all measured values to the CDLSmartHub where measurements are visualised and alarms can be set and transmitted via Email or SMS.
Measures
- 2* combined temperature and relative humidity probes (5mm probes)
- 2* PT100 temperature probes
- 2* high resistance moisture content probes
Hardwired multi-drop network with capability to multi-drop to 99 network nodes giving a total measurement potential of 792 measurements
Leveraging the RDL//nano GSM based monitoring hub all measurements can be monitored via any standard web browser on any tablet, PC or SmartPhone
Specifications- Power Supply: 12 to 24Vdc
- PCB Dimensions: 70mm2
- Communications: Modbus on an RS485 network. Up to 99 addresses available via rotary dip switches
- Inputs:
- 2* combined RH and temperature probes (5 mm diameter) on a 0.5m lead. -40 to +120 Degrees C, +/- 0.3 Degrees C. 0-100%RH, +/- 3%
- 2* High resistance inputs. 0-2G ohm (c/w conversion on SmartHub to WME)
- 2* PT 100 temperature sensor inputs. 3
RDL//Client-THR features and benefits
If you are a home owner or a facility/property manager with a high net worth building peace of mind is paramount to protect your investment from poorly maintained environmental conditions or water ingress.
You can be assured with the RDL//Client-THR system that your property will be monitored at key points 24/7 and alarms generated and distributed if any of these conditions fall out of an acceptable level.
- Manage all settings via CDLSmartHub
- View trends of data over selectable time frames
- Easily add and take away alarm recipients
- Install sensors using a simple multi-dropped hard wire network
- Access data on the move or from the comfort of your office, using the CDLSmartHub from any smartphone, tablet, laptop or PC
- Pick up on deteriorating building conditions early enabling immediate remedial action to be taken
- Set up alarm thresholds based on acceptable levels and alert key people by Email and SMS when thresholds are breached
- Install are quick and simple requiring minimal effort or skill

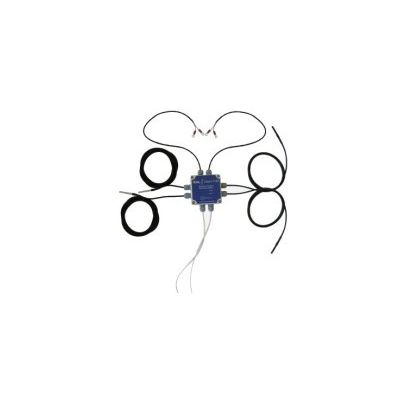

- Multi drop sensor node in lP65box. Capable of measuring 2*PT 100 temperature sensor. 2* combined temperature and RH probes (Hygro-FS-CR) and two high resistance moisture content probes 002-AAB-001
- 5 mm diameter combined temperature and humidity probe. Complete with 0.5m cable. -40 to +120 Degrees C. +/- 0.3 Degrees C. 0-100%RH. +/- 3%.
- 5 mm diameter combined temperature and humidity probe. Complete with 2m cable. -40 to +120 Degrees C. +/- 0.3 Degrees C. 0-100%RR +/- 3%.
- Ring crimp moisture content cables. 0.5m.
- Class 8 temperature sensor. -60 to 200 Degrees C. 3m cable. 6mm diameter stainless probe.
- PT100.3 wire. Class B sensors. 2 metre cable - fibreglass insulated with stainless steel overbraid. Operating range: -10°C to +300°C.
- RDL//nano mounted in IP65 box. Can communicate to up to 99 RDU/Client-THR nodes, http://www.captiondata.com /prod u cts/rd I n a n o/
- RDL//nano mounted in IP65 box. Can communicate to up to 99 RDL//Client-THR nodes. http://www.captiondata.com/products/rdlnano/
