Classical TEM Imaging using negative film materials has been partly replaced by CCD technologies in the past 10 years. While film still produces highest definition images on a big field of view it shows strong limitations in dynamics and linearity. CCD-cameras, which on one hand have the advantage of producing direct digital images, on the other hand only cover a limited area at moderate dynamic range. A third alternative, i.e. Digital Imaging Plate Technology, although known for some time, is now available and affordable for broad use and overcomes the limitations of both technologies: The results are high definition and digital images. Imaging Plates are nearly ideal electron detectors that give you highest quality digital Images. DITABIS Imaging Plate Technology enhances your results with all the benefits of digital imaging. Exploring the advantages of the Imaging Plate Technology, best results are obtained in resolution, linearity, sensitivity, dynamic range and DQE.

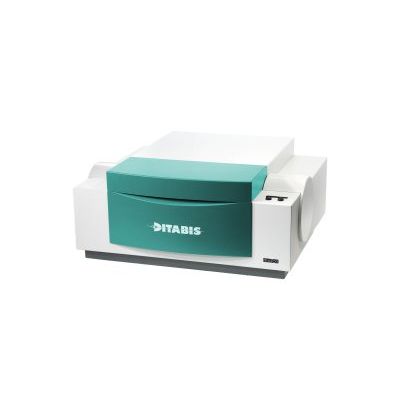

Imaging Plate Scanner with fix pixel resolution of 25 µm:
- Best price-performance ratio in comparison to CCD camera
- Flexible use for more than one TEM or X-ray apparatus
- Extreme high resolution digital pictures with up to 25µm pixel size
- Large range with up to 10 k x 10 k pixels (Imaging plate size 81 x 100 mm)
- Very high dinamic rance with up to 20 bit for applications like Electron Diffraction Pattern
- Very high sensitivity
- Imaging plates are reusable up to 1000 times
Scanner System Specifications :
- Micron 25 : Max. 3600 x 3200 at 25.0 μm (nominal pixel size)
- A/D-conversion : True linear, 2 channels of 16 bit at different gains, 20 bit combined
- 2 channels : Channel 2 for additional signal detection, alternative reflected laser light detection
- Readout time : 2-3 min./5 frames
- Dynamic range : Linear 6 orders of magnitude
- Resolution : > 35% Modulation Transfer Function (MTF) at Nyquist frequency and > 50% at ½ Nyquist frequency (edge method, 120 KV)
- Power : 230 V - 50 Hz; 120 V - 60 Hz, 100W
- Dimensions (w / d / h) : 675 / 580 / 305 mm
- Weight : 60 kg
Data Handling :
- OS platforms : Easy to use Windows 98 / NT / 2000 / XP / 7
- Data format : 16 / 24 / 32 bit data format with comment and setting information in header
- Data conversion : Data export to tif, pcx, gif, jpeg
