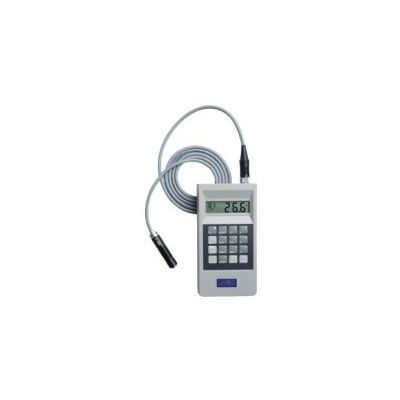

Hitachi High-Tech - Model CMI233 -Diverse Handheld Coating Thickness Gauge for Electroplating and Metal

Our CMI233" has a unique scanning option wtiich compensates (or uneven or textured substrate materials, enhancing performance ot gauge repeatability and reproducibility. A large memory capacity (or over 12.000 readings can accommodate even high usage applications. Accommodates 1 eddy current and 2 magnetic probes.

Key Features:

• Battery operated.
• Withstands harsh environments.
• Large memory capacity.

Provide Designated Scan Time With Automatic Date Stamp And High/Low Indicator

• Measure etched traces as thin as 204 μm (8mils) without line width standards.
• Store 9,690 measurements (optional date and time stamp).
• Custom calibrated specific for your application with certified reference materials.
• Customizable for multiple applications.
• Static or continuous mode measurement.

• Measurement Methods: Statistical Display: Number of readings, mean, standard deviation, high and low reading.
• Magnetic Induction: Conforms to method ASTM B499 & B530, DIN 50981, ISO 2178 and BS 5411 Parts 9 & 11.
• Eddy Current: Conforms to methods ASTM B244 & B259, DIN 50984, ISO 2360 and BS 5411 Part 3.
• Accuracy: +/- (1% + 0.1 urn) relative to reference standards.
• Measurement Ranges: Magnetic: 0.1 -120 mils (0 - 3.01mm)
• Eddy Current: 0.1 - 60 mils (0 -1.52mm).
• Resolution: 0.01 mils (0.25 urn).
• Memory Capacity: 12,400 readings.
• Min. Ferrous and Non-Ferrous Thickness: 12 mils (305 pm).
• Dimensions: in: 5 7/8" (L) x 3 1/8" (W) x 1 3/16" (D) cm: 14.9 (L) x 7.94 (W) x 3.02 (D).
• Weight: 9oz (0.26kg) including battery.
• Units: Automatic conversion between imperial and metric with a keystroke.
• Battery: 9V dry or rechargeable (Continuous Hrs.: 50 Ferrous, 45 Non-Ferrous).
• Rechargeable Battery: 11 Ferrous, 10 Non-Ferrous.
• Display: Three digit LCD display, 1/2" (1.27cm) character height.
• Keypad: Sealed membrane. Enhanced units - 16 keys.
