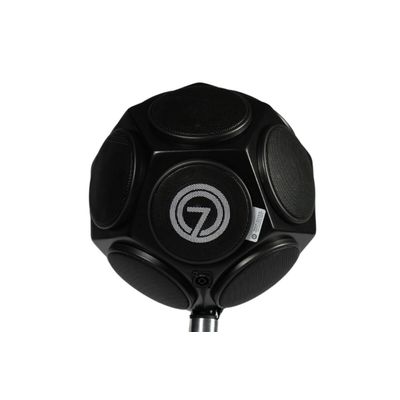

Seven Bel - Dodecahedron Speaker
FromSeven Bel GmbH
The ultra-lightweight, omnidirectional dodecahedron speaker has been specifically designed for sound insulation testing between rooms according to ISO 3382-1, ISO 3382-2, ISO 140-4, and ISO 16283-1. With a weight of only 5 kg and a sound power level of 120.5dBC, it is one of the lightest and most efficient speakers, perfect for supporting building and room acoustic measurements.
Most popular related searches
room acoustics
acoustic measurement
sound insulation
building acoustics monitoring
sound testing
building acoustics
- Weight: 5 kg (without tripod)
- Sound power level: 120.5 dBC (referenced to 1pW) with pink noise
- Frequency range: 50 Hz – 12 kHz, with maximum certified power in the range of 100 Hz to 10 kHz
- Omnidirectional and uniform directivity according to ISO 3382-1, ISO 3382-2, Annex A1 of ISO 140-4, Annex A2 of ISO 16283-1:2014, and Annex D2 of ISO 10140-5
- Number of speakers: 12
- Diameter: 31 cm (distance between opposite faces)
- Permissible electrical power: 300 W (RMS)
- Impedance: 53 Ω
- Standardized input connector: Type “SpeakON”
- Battery-powered operation possible with optionally available power station
