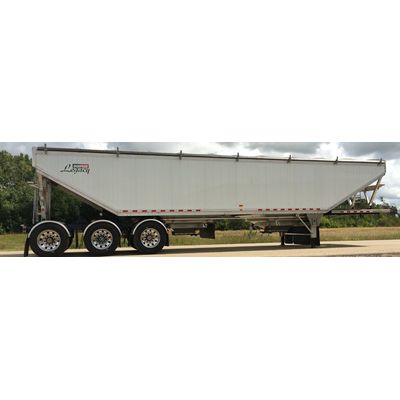

Doepker - Model 2 -Aluminum Open End Tridem Hopper Trailer
The Doepker Legacy is the lightest and strongest aluminum Tridem grain trailer on market. Our Doepker designed Uni-Link system offers innovative, cutting edge technology that gives strength never seen before on an aluminum trailer. Our exclusive 1-piece aluminum double wall slope uses a minimal amount of rivets and has no horizontal seams or rivets giving unmatchable cleanout. The smooth double-wall aluminum design gives the best of both worlds: an aerodynamic outer skin complimenting optimal inside cleanout.
Our "first to market" open end dual aluminum wall design allows you to easily clean and maintain the suspension and slope area from road contaminants that will ensure the Legacy is the longest lasting trailer on the road. Couple this to massive curb appeal in combination of its ability to carry the largest payload makes the Legacy irresistible. Visit your local dealer to view and discuss all of the great and numerous Doepker advantages and options on this grain trailer.
STANDARD FEATURES
- Length 20` 8" - Overall
- 193" - Center of Pintle to Center of 5th Wheel
- Tare Weight TBD
- GVWR 18000 Kg
- Frame Web: Mild Steel
- Flange: High Tensile Steel
- Hitch Solid Hitch Design - 23" Height
- Safety Cable: 1/2" GR 70 Chain c/w 5 Ton Slip Hooks
- Air System Aluminum Air Tanks
- Inline Air Filtration System Built into Glad hands
- Tires Michelin or BF Goodrich
- Rims 22.5 or 24.5: Various Steel and Aluminum Options
- Serial Plate(s) Canada / U.S
- Safety Certified Yes
SUSPENSION:
- System Reyco 91 Spring Ride c/w 4 Leaf Spring
- Optional: Hendrickson Intraax AANT 23K LDA 14" Air Ride
- Wheel Seals Stemco Guardian
- Brakes 16 1/2" X 7" Extended Life
- Antilock Braking System Meritor Wabco 2S1M (2 Sensors / 1 Modulator)
- Optional: 2S2M (2 Sensors / 2 Modulators)
- Axle Spread 49" Tandem, 77 1/2" Track Width
- Auto Slack Adjusters Gunite
- Spring Brake Pots Service Brake Pots
- Wheel End
- Cast Hub and Drum
- Optional: Duralight Hub and Centrifuse Drum Combinations
- Optional: Hubodometer - Metric or Imperial
PAINT AND FINISH:
- Blast Preparation Completely Steel Shot Blasted
- Special Coatings Pure Zinc on Complete Outside Top To Bottom
- Primer PPG Epoxy Primer Inside and Out
- Top Coat PPG Urethane / Acrycote Systems - All Colours Available
- Professional Cure System Entire Trailer put in Heat Ovens for Optimal Paint Adhesion
- Safety Reflective Tape
LIGHTING:
- Wiring Harness Severe Duty Sealed Harness System
- Custom Designed by Trucklite for our Light Packages
PROTECTIVE FEATURES:
- Mudflaps Doepker Mudflaps at Back
- Optional: Mudflaps in Front of Brake Pots on Front Axle
- Fenders 1/2 Round Aluminum Fenders
- Steps 3 Graded Steps for Access to Front of Dollie
- Anti Slip Tape
