Dome 6 Systems
FromK2 Systems GmbH
80% pre-assembled and 70% faster to install thanks to improved components. For more flexibility - also available with long rails (unmounted) for on-site assembly. The handy Dome Speed Spacer distance gauge provides time-saving rail alignment. Secure anchoring with fixed connection for roofs < 10° and low load reserves.
Most popular related searches
Available in two versions
- Pre-assembled rail sets:
- For quick and time-saving assembly
- Sets completely pre-assembled and with click system for peaks
- Tool-free assembly without screws
- Unassembled components:
- With long rails - all the advantages of the Dome 6 system are retained
- For greater flexibility during assembly
- For countries with lower labour costs and for large project dimensions
With our pre-assembled sets:
- Significantly shorter installation time of Dome 6 compared to the predecessor model Dome V
- Thanks to improved, pre-assembled components, new hitch pin technology and the distance gauge
- Designed for current and future module sizes
- Set completely pre-assembled and click system for Peaks
- Tool-free assembly without screws

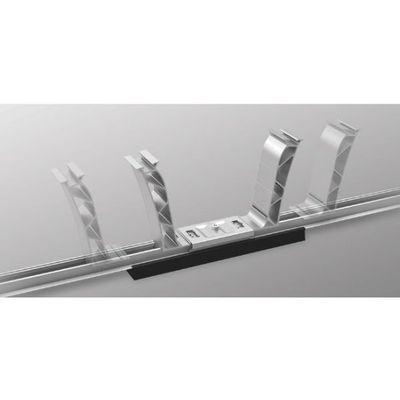

- Quick and easy rail connector with hitch pin
- No screw connection necessary
- Compensates tolerances by means of floating bearings
MiniClamp MC/EC
- Clamping range 30 - 50 mm
- Compatible with MiniRail, MicroRail and Dome V systems
- Optional: Potential equalization with TerraGrif possible
Mat S
- Shear soft Mat S made of EPDM – only 1 size and 1 variant
- Takes up and compensates for tolerances
- High friction coefficients reduce ballast
Dome FixPro
- Extends the application possibilities of Dome 6 systems
- Fixed connection for roofs with inclination < 10°
- Required for roof pitches ≥ 3°
- Recommended for roofs with low load reserves
