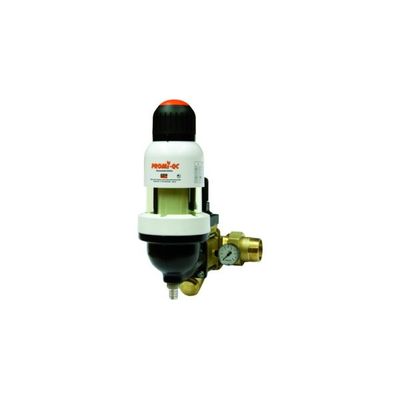

JUDO - Model JPM-QC 1½ - 2 Inch - Promi-Quick Control -Domestic Water Filtration Station
JPM-QC 1½” – 2″ Domestic water filtration station, according to EN 13959, EN 13443-1, DIN 19628 and EN 1567, for drinking water up to 30 °C, operating pressure range 1.5 – 16 bar, nominal flow rate 9.1 – 14.0 m³/h. With stainless steel filter screen, pressure reducer, backflow preventer and highly effective point-rotation system. Thanks to JUDO QUICKSET-E, installation in horizontally and vertically running pipes possible.
Reliable protection
against dirt entry
Uncomplicated
very easy and rapid backwashing
Highly effective
sieve cleaning through unique point rotation system
Practical
no interruption of the water supply during backwashing
Intelligent
backwash reminder via app
Conserves resources and saves costs
avoids waste by changing filter cartridges and is water-saving due to an effective and short backwashing process
Protects and regulates
with pressure reducer to compensate pressure fluctuations and adjustable holding pressure between 1.5 and 6 bar
With manometer for exit pressure and temperature display
High-quality filter housing PN 16; built-in rotary flange made of brass with screw connection (threaded connection according to EN 10226-1); horizontal or vertical installation possible; return flow inhibitor; filter screen made of stainless steel; inlet and outlet pressure gauge; backwashable strainer insert, handwheel for backwashing according to the highly effective point rotation system for optimum germ protection with simultaneous cleaning of the sight glass; pressure reducer with factory set follow-up pressure of 4 bar, setting range of the follow-up pressure of 1.5 – 6 bar *.
