Dominator -Â Model 3500 -Depackaging Machine
Feature: Heavy duty construction. Solid steel 160mm dia shaft lined with steel paddles. Lined with two mesh screens through which the organic is forced through. Water can be injected to barrel to aid cleaning / wash out material if needed. Two inspection doors for easy access to internals. Can be used as a standalone machine or part of a production line. Mechanically and electrically interlocked to prevent accidental start-up.
- 160mm dia solid steel shaft lined with M30 threaded paddles
- 660mm dia barrel, 10mm thick. Painted carbon steel or 316 Stainless steel
- Up to 75kW motor directly mounted to shaft via gearbox
- Process up to 20m3 per hour of wet or dry product
- Up to 96 paddles - several types available to suit application
- 5-30mm screen sizes available
- Water tight access / inspection doors.
- Stainless steel contact parts
- Range of screen sizes and paddle types available
- Rotation sensor
- Shaft speed to suit application
- Infeed conveyor and hopper
- Access platform and stand
- Outfeed conveyors
- Electrical control panels.

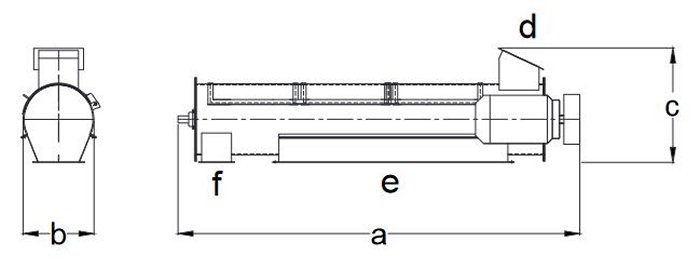

- Overall length (a) - 4035
- Width (b)- 711 Height (c)-1150
- Inlet (d)-400x400
- Outlet 1(e)-2300x410
- Outlet 2(f)-300x410
Depending on your requirements and your objectives, we can supply The Dominator in three different ways:
Waste Depackaging Machine Only
We supply the machine, you supply the rest
End-to-end Depackaging Line
We supply everything you need; The Dominator, Intake Hopper, Screw Conveyors, Pumps, Controls Panel, Platform and anything needed
-

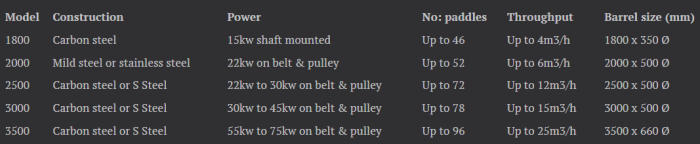

Mild steel or Stainless steel 316 construction
-
15kW to 75kW motor
-
Various paddles designs available, depending on product being processed
-
1.8m to 3.5m barrel length
-
Various screen sizes available depending on customer requirements
-
Up to 25m3/hr throughput depending on material being processed
-
Effluent injection points can be added to the barrel to assist with wet waste
-
Dominator can be customised to suit your exact requirements
