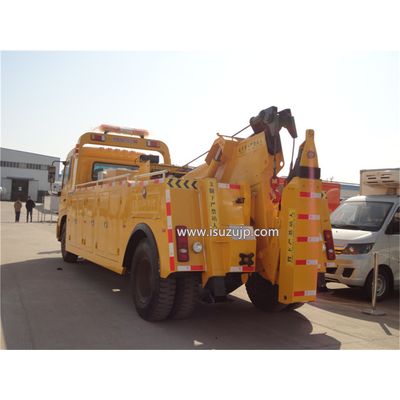

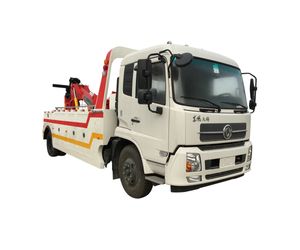

Dongfeng - Model CLW6100GSSD3 -Dongfeng 16 ton wrecker truck
Chassis brand dongfeng Product origin China, Hubei Delivery time around 7 working days Supply capacity 4,000 units one year Heavy duty tow truck refer to special rescue vehicles equipped with lifting boom, underlift boom, winch ,crane, etc rescue equipment. Heavy duty tow truck is used for towing off the faulty vehicles or accident vehicle on the road, illegal vehicles in the city and emergency rescue. Dongfeng heavy duty tow truck learn advanced technology from European and American countries, and make better the configuration to reduce costs, dongfeng heavy duty tow truck belongs to one multifunctional and cost-effective road rescue vehicle.
16 ton wrecker truck is also called heavy duty recovery truck, underlift tow truck, etc, heavy duty tow is mainly divided into these categories: towing lifting connected type, towing lifting separation type, 360 degree rotator wrecker, etc.
Product Feature
Dongfeng new design cab with Dongfeng Cummins engine
High strength steel and advanced production process
Several kinds of export way: complete vehicle, bulk parts, spare parts, etc
Main parameter
Product Name
DONGFENG 16 ton wrecker truck
Driving Type
4×2
Weight /classification
type
tow and lift connected
Rated payload weight(kg)
9000
Dimensions
Wheelbase(mm)
5600
Overall Dimension(mm)
9250×2350×3450
Engine
Engine brand
DONGFENG Cummins 190hp, 210hp,
Engine type
4 stroke, water-cooled, straight line 6 cylinders, diesel
Chassis
Axle Quantity
2
Transmission Type
6/8 forwards,1 reverse gear, manual
Steering Type
LHD or RHD with power steering
Brake system
Air brake
Tire Spec. & size
9.000R20 or 10.00R20, 6 with a spare
Cab
Standard configuration
Flat proof, new design single sleeper, radio, sound and so on
Air conditioning
Have
Performance parameter of DONGFENG heavy duty tow truck
Platform size
Hoisting & under lifting conjoined
Standard configuration
1.Two 8 ton hydraulic winch with 30m long steel wire rope
2.Two section hexagonal boom, three section corbel(under lift arms),
3. Split compartments, bilateral linkage operation device,
4. Five pairs forks, one pair of fork cover, one set auxiliary brake pipe assembly
5. One led warning lamp with siren
Performance data
1. Max Towing Weight(kg):20000Kg,
2.Max Lifting weight(kg):16000kg, Max hoisting:12000kg
