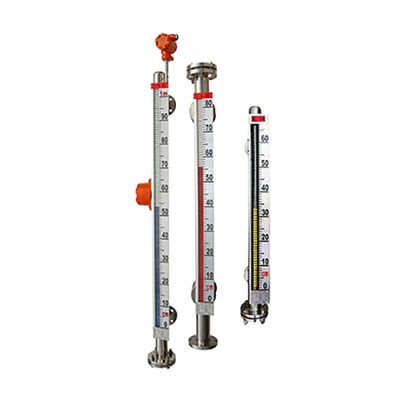

Dongrun - Model UHZ-99A -Side-Mounted Magnetic Level Gauge
The UHZ-99A side-mounted magnetic level gauge is designed for precision measurement of liquid levels in various containers with unique shapes like towers, kettles, grooves, and boiler furnaces. It operates reliably under difficult conditions such as high pressure, temperature fluctuations, and corrosive environments, thanks to its buoyancy and magnetic coupling principle. A significant advantage of this gauge is the complete separation of the liquid medium from the indicator, ensuring safe and durable operation. Its wide measurement range and striking display make it superior to traditional glass plate gauges, offering enhanced safety and reliability. It includes liquid level alarms and control switches to manage peak and low levels effectively. This system is particularly applicable in industries like electric power, petrochemicals, metallurgy, and environmental management.
UHZ-99A side-mounted magnetic level gauge can be used to measure level of various vessels in the shape of tower, kettle, groove and ball as well as boiler furnace. It can be used in complex conditions, such as high-sealing, leak prevention, high pressure, high temperature and corrosion. In the measurement process, no measurement blind area. It strikingly displays the level and has a wide measurement range.
Compared with traditional glass plate level gauge, it is safer, more reliable, more advanced and more practical. The most obvious characteristic is the complete isolation of liquid medium and indicator so it can be used safely, reliably and durably in any case. Series UHZ-99 level meter equipping with liquid level alarm, control switch can control and alarm the highest and lowest level.
- Polyester and high temperature ceramic shell can resist high temperature.
- Wide measurement range, unconstrained by vessel height.
- Complete isolation of medium and indicator, safe and reliable
- Simple structure, easy installation, low maintenance cost
- Anti-corrosion, no power supply and good explosion-proof performance
- Easy flanged connection
- High temperature resistence
- Safe and reliable to use
- Wide measuring range, display clearly
- Easy installation, no need of power supply
- Corrosion-proof, explosion-proof
- Measurement range : 300-15000mm
- Accuracy : ±10mm
- Column diameter : 9mm
- Operating pressure : ≤10.0Mpa (>10.0Mpa customized);
- anti-corrosion type≤1.0Mpa
- Medium density : ≥0.45g/cm3
- Medium density difference : ≥0.15g/cm3
- Medium temperature : -20~+400℃
- Medium viscosity : ≤0.4Pa·S
- Equipment vibration : frequency≤25Hz, amplitude≤0.5mm
- Follow speed : ≤0.08m/s
- Connection flange : DN20, PN0.6
