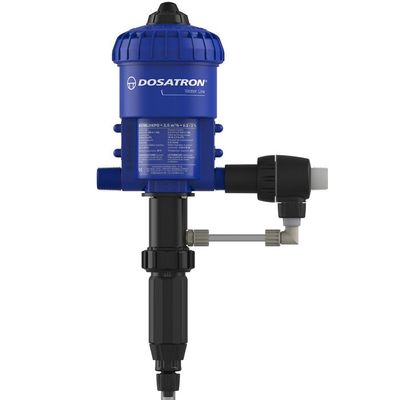

DosatronModel D25WL2 IE PO -Dosing Pump- polymers Metering pump

SHARE

Specific Features: The D25WL2 IE PO is an efficient and attractive solution for in-line polymer dosing, thanks to standard equipment adapted to viscous products, its external injection and its dynamic mixer. Proportional dosing and without electricity. Proportionality dependent on water flow. Significant homogeneity.

Most popular related searches
  • Injection range0,2 - 2 %
  • Water flow range10 l/h - 2,5 m3/h
  • Operating water pressure0,3 - 6 bar
  • Concentrated additive injection0,02 l/h - 50 l/h
  • Stroke volume~ 0,45 l
  • ConnectionsNPT-BSP 3/4`` M Ø 20x27mm
  • Seals for acidic additives
  • Kit for viscous additives recommended for more than 200 or 400 cPs (depending on model)
  • External Injection
  • Dynamic Mixer
  • PVDF housing for highly concentrated acids and other aggressive concentrates
  • Seals for highly concentrated acids (>15%)
