DOSATRON - Model D30WL30000 N IE -Dosing Pump- Metering pump

The high-flow dosing solution Specific features The D30WL range of dispenser is specifically designed for high-flow drinking water, treatment and disinfection applications, and for networks up to 30 m3/h. Materials and options adapted to water treatment additives. Operates without electricity. Allows fully proportional dosing, regardless of flow and pressure variations. Compatible with hard water. Maintenance without tools. Specifications Injection range 0,003 - 0,03 % [1:30000 - 1:3000] Water flow range 8000 - 30 000 l/h Operating water pressure 0,5 - 6 bar Concentrated additive injection 0,24 - 9 l/h Stroke volume ~ 0,53 l Connections Flange 3”, Thread NPT Serial equipments af.svg Seals for alkaline additives Available options (Integrated by-pass) system for manual activation of the additive suction (on) and stop (off)

Most popular related searches

water treatment additive

drinking water treatment

water treatment operations

water treatment disinfection

dosing pump

metering pump

How it works ?

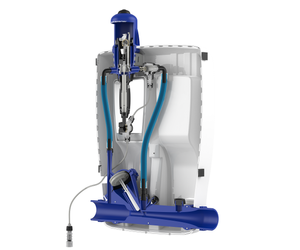

The D30WL consists of :

A flow divider in the lower part (patented technology) which ensures a continuous flow division with a constant ratio of the input flow.

A D3 dosing unit in the upper part performing the additive dosing, in proportion of the flow derived from the flow divider.

As any Dosatron dosing unit, dosing from the complete systemproportional to the water input flow, regardless of flow and pressure of the water.

Whenever necessary, our online calculation tool or technical services will help you with stock solution calculation if pre-dilution is required.
