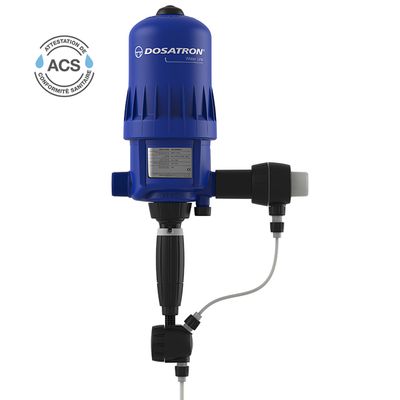

Dosatron - Model D8WL3000 IE ACS -Dosing Pump- Metering pump

It meets the dosing needs for flow rates ranging from 500 to 8,000 l/h.

• Proportional dosing and without electricity
• Proportionality dependent on water flow
• Outlet injection
• AF seals adapted to alkaline products

• Injection range0,03 - 0,125 % [1:3000 - 1:800]
• Water flow range500 l/h - 8 m3/h
• Operating water pressure0,35 - 8 bar
• Concentrated additive injection0,15 - 10 l/h
• Stroke volume~ 1,7 l
• ConnectionsNPT-BSP 40x49 - 1"1/2 M

• External Injection
• Seals for alkaline additives
• ACS Certification - Drinking Water France

• (Integrated by-pass) system for manual activation of the additive suction (on) and stop (off)
• Support legs

• Drinking water treatment
