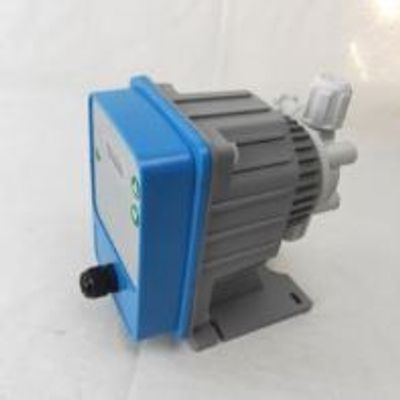

Brace - Model MF103TDH1200 -Dosing Pump
MTL is a simple solenoid dosing pump, operating with a micro-processor to manage the dosing, it is easy to opera with stable flow rate. It has four model :MF,ML.
Most popular related searches
dosing pump
industrial wastewater treatment
level controller
solenoid dosing pump
wastewater treatment
industrial wastewater
ceramic ball
head pump
digital dosing pump
solenoid pump
- Product Item：MF103TDH1200
- PVDF pump head
- flow display dosing pump
- digital display dosing pump
- Category：MF series
- Max pressure:10 bar; Max flow rate :9 L/H
- Pump head: PVC
- Compatibal
- PVC pump head and ceramic ball valve as standard
- PVC is suitable for almost all chemical used in the industrial ,waste water treatment and potable water applications
- the use of ceramic balls as standard improves the pumping reliability and the chemical compatibility of the whole liquid end.
- Reliable
- Diaphragm _Made of pure solid PTFE
- The advanced design and manufacturing process allows the diaphragm to have a unique life expectancy.
- Made of pure solid PTFE, the diaphragm is compatible with most chemicals
- Routine diaphragm replacement is no longer a requirement
The flow rate is manually or automatically (by signal input) adjustable,MF, ML ,MC, and MG have level control input.
- Liquid end
- pump head :PVC
- Ball :Ceramic
- Seal :FPM/EPDM
- Diaphragm :PTFE
Installation
- Horizontally-mounted(standard)
- Wall-mounted(option, need to buy bracket)
- MF : Analogue dosing pump with constant flow rate manually adjustable
- Flow rate manually adjustable by control dial on the front panel ,Power-on LED indicator ,with indication of frequency percentage(p%) and stroke number(F)
- ML : Analogue dosing pump with constant flow rate manually adjustable and level control input
- Flow rate manually adjustable by control dial on the front panel ,power on LED indicator ,with indication of frequency percentage (p%) and stroke number(F),with level control input.
- MC: Automatic control (digital pulse signal input)
- With operation status indication, level control input, have two dosing models:
- Constant The pump doses the rate selected with the button
- Proportional The pump doses proportionally to the signal
- MG : Automatic control (4-20mA signal input)
- With operation status indication, level control input, have two dosing models:
- Constant The pump doses the rate selected with the button
- Proportional The pump doses proportionally to the signal
