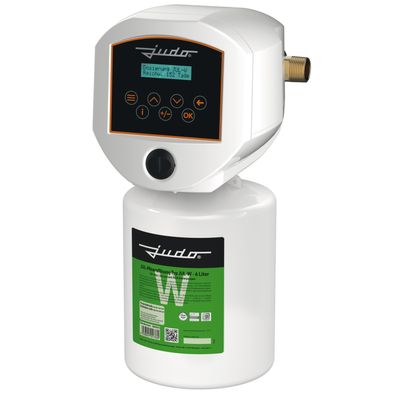

JUDO - Model i-dos eco 3 - 60 -Dosing Pump With App Control
JUDO i-dos eco 3 – 60 Dosing pump with app control for dosing (in proportion to quantity) JUDO JUL mineral solutions, which are suitable for drinking water treatment, in order to prevent corrosion damage and water scale deposits in cold and hot water supply systems. For installation in cold water pipes up to max. 30 °C. For drinking water up to 30 °C, max. operating pressure 8 bar. Horizontal or vertical installation by simply turning the JUDO QUICKSET-E built-in rotary connection.
Corrosion protection
by protective coating
Limescale protection
by hardness stabilisation
Connectivity module
for connection via LAN
Worldwide controllable
via app or web browser
Security included
by encrypted communication
Documented
output of type and quantity of dosed preparation substances via USB interface and JU-Control APP
Protection against misuse through activation code
Resource-saving
can be used with JUL mineral tablets
Self-venting piston metering pump (PN 10) with low-wear multiphase motor drive. With contactless, electronic proportional-control via water meter with hall-sensor, control electronics with touch-sensitive keypad and LCD display for operation and monitoring of all system functions, documentation of dosed quantity of JUL mineral solution. Possibility of remote system control via JU-Control smartphone or browser app. Activation function for new mineral solution containers to protect against misuse. Dry-running protection, connecting cables for power supply unit, built-in injection point with dosing hose, built-in rotary valve with patented bayonet connection made of brass with screw connection and mounting cover, threaded connection to DIN EN 10226-1, plastic housing. Output for potential-free empty signal (signal transmission cable, order no. 8340067 required).
