Dositec - Model MD -Manual Electromagnetic Dosing Pump
FromITC S.L

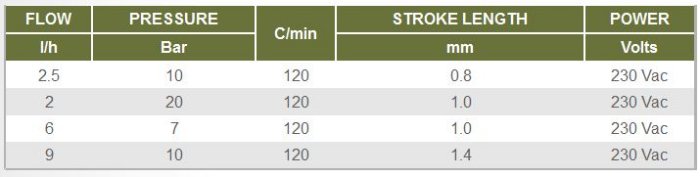

Electromagnetic Diaphragm dosing pump with MANUAL regulation through a keyboard and display. Flow: 2.5 – 9 l/h. Pressure: 10 bar.
Most popular related searches
electromagnetic dosing pump
dosing pump
diaphragm dosing pump
electromagnetic pump
electromagnetic diaphragm pump
diaphragm pump
ceramic ball
ball valve
magnetic pump
PTFE valve
Hydraulic
- Connections: Hose 4x6
Electrical
- Voltage: 230 Vac 1ph 50/60Hz, 110Vac 1ph 50/60Hz,
- Power: 37w, 58w
- Protection: IP65
Materials
- Cylinder: PVDF
- Diafragma: PTFE
- Sealing: FPM / EPDM
- Valve (body): PVDF
- Valve (ball): Ceramic
Weight and Dimensions
- Weight: One module 3 kg (6.6lb) / 3,8 Kg (8.4lb)
