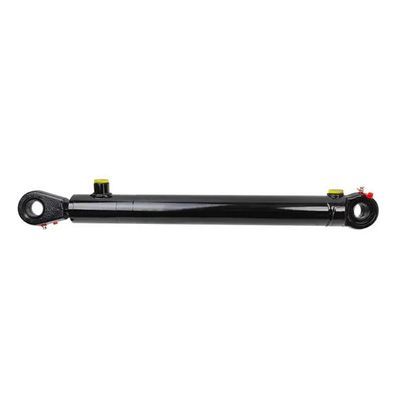

Quanye - Model HSG-E-73/63-400 -Double-Acting Hydraulic Cylinder
Our cylinders are professionally designed to stand out in agriculture, construction and manufacturing, providing unmatched reliability and performance while supporting any custom need. Designed to meet the most stringent industry standards, its compact design makes it the best choice for space-constrained applications, ensuring optimal functionality in mobile and confined environments.
Most popular related searches
- Cylinder Type: Custom
- Production standard: JB/T 10205-2010
- Rod Motion:Piston type Double acting hydraulic cylinder
- Piston Sealing Ring Material: Polyurethane
- Piston rod material: Q 355 steel, chrome-plated and heat-treated
- Pressure: 16 M P A
- Cylinder bore diameter: 63 mm
- Cylinder outer diameter: 73 mm
- Piston rod material: 45# steel, chrome-plated with a thickness of 0.03 mm
- Piston rod diameter: 36 mm
- Stroke length: 400 mm
- Pin hole center-to-center distance (both ends): 680 mm
- Pin hole diameter: 35 mm
- Oil port internal thread: M 22×1.5
- Such as high pressure bearing capacity, wear resistance, stability, etc.
- 45# steel body
- Recommended hydraulic medium: anti-wear hydraulic oil
- NBR (Nitrile)/Polyurethane seals
- 240 bar Static Proof Pressure
- Hydraulic fluid operating temperature range: -30 to +110°C
- 160 bar working pressure
