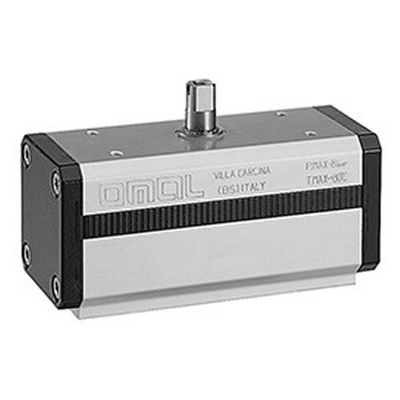

Edelstahlservice - Double Acting Pneumatic Actuator

Mounting flange according to DIN/ISO 5211 DIN 3337 F03 - F04 - F05 - F07 - F10 - F12 - F14. NAMUR connection for accessories. Rotation angle: 90°. Torque: directly proportional to the air supply (see table). The code numbers after the DA letters always correspond to the breakaway torque in Nm by 5.6 bar air supply. Working condition. Temperature: from 0°C to +80°C; from -20°C to +80°C with dry air only. Air supply: 5,6 bar; maximum 8,4 bar. Operating media: dry filtered air, not necessary lubricated. In case of lubricated air, either non detergent oil or NBR-compatible oil must be used.
