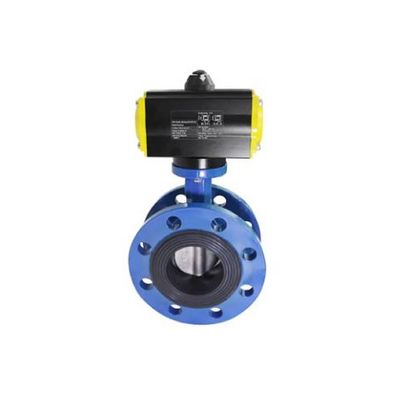

Fleyenda Flow - Model FLE64(4)1X(F, F4, J) -Double-Acting PTFE Butterfly Valve With Pneumatic Actuator
Fleyenda double-acting butterfly valve with pneumatic actuator is made of Cast Iron, Carbon Steel(WCB), and Stainless Steel(CF8, CF8M). PTFE material seat has a stronger sealing performance. The double-acting actuator provides force in both directions, allowing the valve to open and close smoothly and reliably. This ensures precise control of fluid or gas flow in both directions. Fleyenda has 18 years of production experience and insists on customer-centered service. We have provided solutions for more than 40 industries, welcome to contact us for customized products!
Most popular related searches
pneumatic actuator
butterfly valve
pneumatic actuated butterfly valve
pneumatic actuator valve
valve actuator
pneumatic valve
PTFE butterfly valve
actuated valve
valve positioner
HVAC system
- Professional technical R&D team
- More than 20 engineers with qualification certificates
- More than 100 professional skilled employees
- Fast Delivery: Large standard products in stock
- ODM Service is Available
- One-stop Solution: Full set of pneumatic accessories for the option to improve your working efficiency
- Quality Assurance: Strict IPQC & QC to make sure the high-quality actuator and valve
- Larger Size: Longer air cylinder, higher air consumption
- Stability: Reliable pneumatic actuator for long-term stable operation performance
- Cost-effective: Lower upfront costs, require less maintenance and have long service life, resulting in lower overall operational costs.
- Corrosion Resistance: Pass 1,000,000 cycles of life test
- Fast and Responsive: Quick opening and closing function.
- Size Range : DN50 to DN500(2″ to 20″)
- Body Material : Cast Iron, Carbon Steel(WCB), Stainless Steel(CF8, CF8M)
- Disc Material : Cast Iron?Stainless Steel
- Seat Material : Rubber, PTFE
- Connection Type : Wafer (GB/ANSI/JIS/DIN)
- Pressure Rating : 0.6, 1.0, 1.6, 2.5MPa; 150Lb, 300Lb, 600Lb, 900Lb; 10K, 20K
- Temperature Of Medium : -30°C to 180°C (-86°F to 356°F)
- Mode of Action : Double-Acting/Single-Acting(Spring Return)
- Optional Accessories : Solenoid Valve, Positioner, Limit Switch, F.R.L., Manual Device
- Applications : HVAC Systems, Water Treatment, Food Processing, Chemical Industries etc
