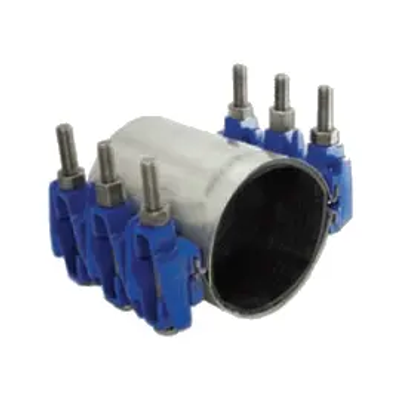

Smith-Blair - Model 225 -Double Band Full Circle Repair Clamp
Full Circle Repair Clamps feature a lap type gasket with molded tapered ends to provide efficient equalized sealing at the lap joint on any pipe within the clamp’s range. The gasket has a finely grided surface with the resilience to easily conform to irregularities on rough pipe surfaces or in pitted areas, providing an effective seal all around the pipe.
A stainless steel bridge plate spans the opening of the lugs and is bonded flush into the gasket to prevent wrinkling in the lug area, providing even gasket pressure at all points around the full circumference of the pipe.
The band is made of stainless steel, selected to meet the necessary corrosion resistance, flexibility and strength requirements. Lugs are securely attached to the stainless steel band, and have mutually supporting stabilizing fingers to permit maximum torquing of the bolts. The lug design includes a drop-in bolt feature that eliminates loose parts, saves time and aids installation under adverse conditions.
The bolts and nuts are low alloy steel with rolled threads, double radius heads and a generous shoulder to prevent bolt rotation under maximum torque loading.
- Removable lugs to allow installation in tight spaces
- 18-8 Type 304 Stainless Steel band for corrosion resistance
- Standard widths 7.5” through 30”
- A 360° gasket seal provides full circumferential support and reinforcement
- Lugs have a fusion bonded Flexi-Coat epoxy coating for corrosion resistance
- Repair pipes in a wide variety of sizes and widths to fit your application
- One starter (longer) bolt minimum per clamp through 4.5” O.D. sizes to help with installation
- Range up to .40” in the single band (slightly less in smaller sizes); .80” in the double band; more in larger clamps to help reduce inventory
- Drop-in bolts to ease installation. If more than one band, all joints except for one will have all-closed lugs to keep bolts in place during installation
