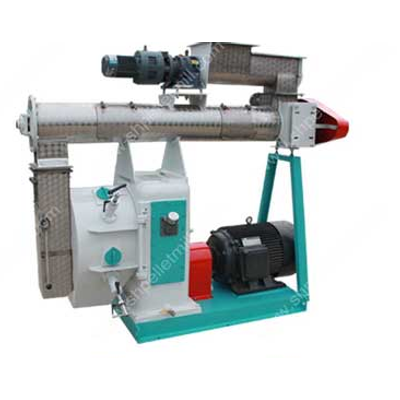

Double Crane - Model SZLH350 -Ring Die Feed Pellet Machine
The SZLH350 ring die feed pellet machines are patented products with unique design by Shandong Double Crane Machinery Manufacture Co., Ltd, the professional feed pellet mill producer in China.The poultry feed pellet mill is one of the key machines in feed pellet production line It’s die mold is made of stainless steel or alloy steel for your choice. It has the characteristics of low cost, reasonable structure, compact layout, reliable performance and easy maintenance.
Most popular related searches
- Driven by variable frequency motor, the feeder can be adjusted automatically within a certain scope according to the production;
- The interlock device, outer machine discharging device and overload protection device work together to ensure the safety and reliability;
- Magnetic separation and removal mechanisms are configured to prevent the iron impurities from entering into the suppression of granulation chamber.
- The circulating lubrication oil system is specially designed to ensure the bearings in good condition.
- The ordinary conditioner, thermal insulation conditioner or double-shaft differential conditioner are options according to your requirements.
- Model: SZLH350
- Capacity (t/h): 5-7
- Main Power(kw): 55
- Conditioner Power (kw): 2.2
- Feeder Power(kw): 0.75
- Inside Diameter(mm): 350
- Pellet size(mm): 2-8
- Machine Size(mm): 2500*1000*2000
- Machine Weight(t): 2.6
- Remark: Optional pellet machine power, 22kw /37kw/55kw/110kw/132kw
- Cereals:soybean, soybean meal , maize,corn, corn flour , grain,sorghum,wheat flour etc;
- Coarse fiber: crop stalks (corn stalk, sorghum stalk, cotton stalk, rape stalk, peanut seedling, sunflower stalk), chaff, grass, grass meal, alfalfa, wheat bran, rice husk, grass, groundnut shell, cotton seed shell etc;
- Additives: molasses, vegetable oil, Amino acid, bone meal, vitamin,etc; Generally, the raw materials for ring die pellet making machine are cereals(100%) or cereals(60-80%) and coarse fiber(20-40%).
