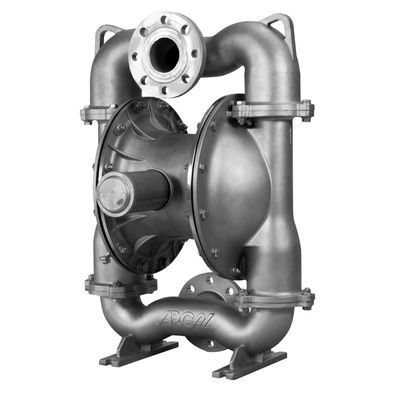

Mistral - Model 300 - 3 Inch -Double Diaphragm Pump
High hydraulic performance. Low air consumption. Non-icing air valve system. Very-fast air distributor system made of only 5 components. Stall-free design. Anti-corrosive materials (AISI 316L, Bronze, Duplex) or anti-abrasive material (PE1000). Thermoplastic diaphragms (TPE, TPV) and reinforced elastomers (EPDM, NBR, PTFE). Ideal for shear-sensitive liquids (thanks to the smooth movement of the diaphragms). For continuous, heavy, and dangerous. ATEX Zone 1 (Serie II 2/2 GD IIB T4) Conformity Ex.
- Capacity: up to 1280 l/min
- Connections: 2" 3" 4"
- Wetted parts: AISI 316L, Exotic alloys, UHMW-PE
Mistral 4" pumps can operate in dangerous and explosive atmosphere Zone 1 (Serie II -/2 GD IIB T4)
Mistral pumps are ideal for heavy applications and process ones on Off-shore platforms for load/unload and for transferring sea water, brine, etc... They can also be employed for cement mixer sewage cleaning, loading and unloading.
- Off-shore platforms
- Marine applications
- Chemical processes
- Piping cleaning
- Loading/unloading of cement mixers
- Mineral extraction and treatments
- Capacity: up to 1100 l/min
- Heading: up to 80 m
- Air consumption: up to 4500 Nl/min
- Wetted parts: AISI 316 L
The distribution system offers very significant advantages:
- simple and maintenance free 5-component construction
- the material of construction resistant to wear and chemicals for a longer lifetime without damage
- affordable cost
- high-shift speed and high-discharge speed of the exhaust air
- low consumption as consequence of the fine-tuned air quantity supplied to the diaphragm.
