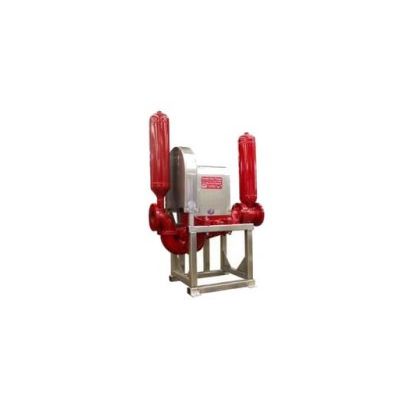

Penn - Model 4DDSX30 -Double Disc Pump
Maintain In Place design w/ hinged housingsfor quick elastomer replacement without disturbing piping. Two-piece swan neck. Only 5 wetted components. Self-priming with high suction lifts. Seal-less design, no packing or mechanical seals, no seal water required. Runs dry without damage. No check valves, no fouling problems. Handles up to 1” solids and line size semi-solids. No routine maintenance required. Custom configurations available. Two (2) year warranty
Most popular related searches
- Typical Flow Range: Up to 190 GPM
- Displacement: 0.30 gal/rev @ 60ft TDH @ 300RPM
- Operating Speeds: Up to 500 RPM
- Discharge Pressure: Up to 60psi operating
- Up to 110psi stall pressure
- Suction Pressure: Up to 25” Hg (28ft)
- Fittings: 4” 150# Flanged
