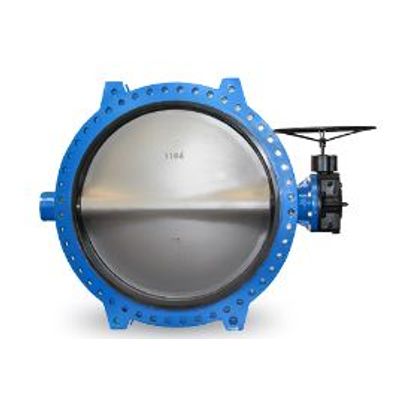

Hakohav - Model Hok -Double Eccentric Butterfly Valve

SHARE

Hok Double Eccentric Butterfly Valve Double Flanged 6" Operation Electric actuator Disc Ductile iron Sealing ring EPDM Shaft SS 420 PN 10 Face to face acc. EN 558-1 Series 13.

Most popular related searches
double eccentric butterfly valve
eccentric butterfly valve
butterfly valve
butterfly valve centric
electric actuator
centric butterfly valve
butterfly valve flange
sealing system
resistivity profiling
flow profiler
  • Size: 6
  • Operation: Electric actuator
  • Disc: Ductile iron
  • Shaft: SS 420
  • Pressure: PN 10
  • According to: EN 593
  • Face to face: EN 558-1 Series 13
  • Flanges according to: EN 1092-2
  • Smooth body finish allows minimum flow resistance
  • Low profiled disc design ensures highr CV values reduces torques and minimizes seal wear
  • Special sealing system with endless t profile
