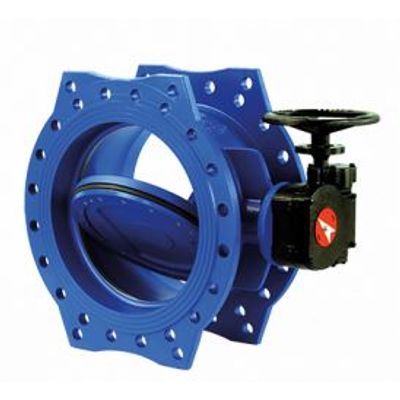

Ekoval - Model EKO1200 -Double Eccentric Flanged Butterfly Valve
Pressure Ratings: PN10,16,25,40. Design Standard: BS EN 593. Face to Face Length: EN 558-1 Series 14 or 13. Valve Test: EN12266-1. Valve Marking: EN 19. Flange Standard: EN 1092-2. Product Group: Butterfly Valve. Medium: Water.
Most popular related searches
butterfly valve
control valve
flanged butterfly valve
electric actuator
pneumatic actuator
double eccentric butterfly valve
flow control valve
position indicator
valve testing
epoxy coating
- Valve design according to BS EN 593 Double Eccentric Design standard
- Face to face length according to EN 558-1 Series 14 (Long) or EN 558-1 Series 13 (Short)
- Flanged connection according to DIN2501, EN 1092-2 or ISO 7005-2
- Hydraulic Pressure test according to EN 12266-1
- Wear Resistant Resilient EPDM or NBR Disc Sealing
- Maintenance Free Bronze Shaft Bearings
- Can be supplied with Bidirectional Design
- EKO1200 Butterfly Valves can be used as Control Valves and for Regulation Purpose
- Used in Pump Stations, Water Treatment and Desalination Facilities, Reservoirs etc.
- Max Application Temperature +70°C
- EKO1200 Butterfly Valves can be used as Control Valves and for Regulation Purpose
- Suitable for Electric and Pneumatic Actuator Connection for On-Off and Regulating Purpose
- WRAS Approved Model Suitable for Potable Water
- Double Eccentric Valves are Two Direction Seat Tight, Please Obey Flow Direction Arrow
- Body: GGG40/50 Ductile Iron
- Disc: GGG40/50 Ductile Iron
- Retaining Ring: Ductile Iron , Steel , Stainless Steel
- Disc Sealing: EPDM , NBR
- Bolts: Galvanized , Stainless Steel
- Shaft: SS420,SS304,SS316 Dublex
- Bearing: Bronze
- O ring: EPDM/ NBR
- Cover: GGG40/50 Ductile Iron
- Gear Box: GGG40/50 Ductile Iron
- Seat: SS316 Welded
- Inside and Outside 250 to 350 Microns Fusion Bounded Powder Epoxy Coated RAL 5005
- Can be supplied with Gearbox ( IP-65 rated, IP-67 or IP-68 )
- With Electric Actuator
- Electric actuator ready
- Pneumatic Actuator
- Fixed & Telescopic Extension Spindle
- With Hydraulic Actuator (Refer to EKO1250)
- With Limit Switches or Position Indicators
