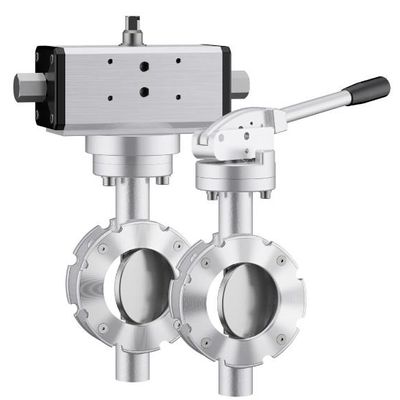

Burgmer - Model 210 DE -Double Eccentric Valve
Application area: Liquid tank trailers, Plant engineering. Installation situation: Wafer type. Medium/aggregate state: Fluids, Gases. Diameter: DN 50 – DN 100. Pressure range: up to +10 bar. Temperature range: up to +200°C. Feature: double eccentric mounted disc.
Most popular related searches
- Casing: 1.4408 / 1.4539
- Disc: 1.4408 / 1.4539
- Shaft: 1.4462 / 2.4856
- Bearing pin: 1.4404 / 2.4856
- Sealing: PTFE 15% Fiber-glass share
- Flange bores: TW-Norm, PN6, PN10
- Actuation
- Hand lever 1.4404/08,
- Hand lever 1.4404/08 lockable,
- pneumatic driven (double-acting / single-acting)
- Guideline: according to DIN EN 14432:2014
