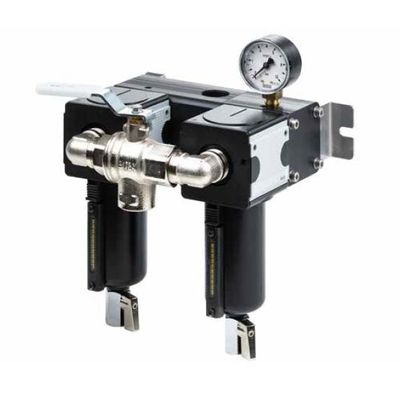

SITEK - Model STS - Double Filter

SITEK - Model STS -Double Filter

Sitek Double Filter is designed for filtration of compressed air before pneumatic devices and junction boxes. It is excellent for devices requiring high degree of filtering, such as digital positioners and converters. Compact construction, including parallel filters and three-way valve with one hand lever, facilitates easy on-line filter element change and secures trouble-free compressed air supply. There are three filtration level options 1, 3 and 5 microns. Sitek - Double Filter is easy to install. It can be equipped with an output pressure gauge or a pressure switch to indicate the contamination level of the filter in operation. The sight glass on the side of the filter cup is also an option. It shows the moisture level in the filter cup. The filter cup is equipped with ball valves for draining. Filter element has to be changed when the output pressure has decreased to the specified minimum operation pressure.
