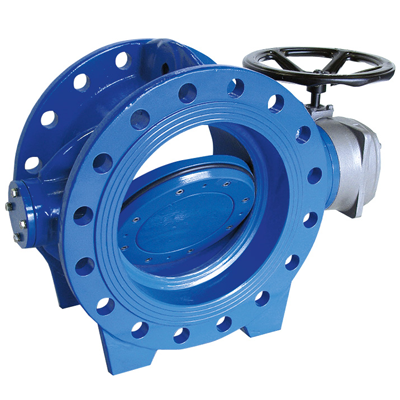

Taurus - Double Flange Caps Butterfly Valve

FromCENTER TECH Armaturen GmbH

SHARE

Area of application: water supply, water systems.

Most popular related searches

flanged butterfly valve

butterfly valve

corrosion protection

eccentric disc valve

butterfly valve flange

in the nominal sizes DN150 to DN2600
Flange connection according to DIN EN 1092-2 PN10, PN16, PN25, PN40

Overall length according to EN 558-1 basic series 14 (DIN 3202/F4) soft-seated
with chambered EPDM (KTW-W270) or NBR profile ring
double-flanged butterfly valve with double-eccentric valve disc

Body and flap disc made of EN- JS 1030 (GGG- 40)
Seal made of EPDM (KTW- W270) or NBR Shaft made of stainless steel 1.4021
Screws 1.4301
Corrosion protection: inside and outside as well as flap disc EKB,
RAL 5015 sky blue, layer thickness approx. 250 µm
Enamelled inside and flap disc available on request

with worm gear/handwheel
with electric drive
with pneumatic drive
