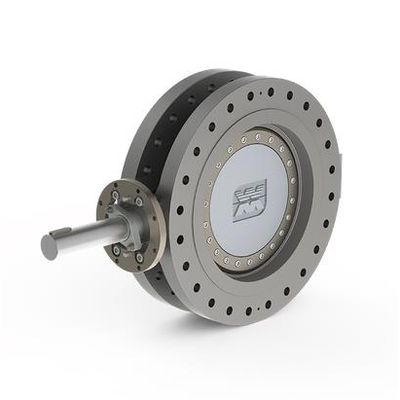

Quadax - Double Flange Type Butterfly Valve
This type has a flange on both sides and is connected to the pipeline via a screw-nut connection. It is the shortest overall length after the lug type.
Most popular related searches

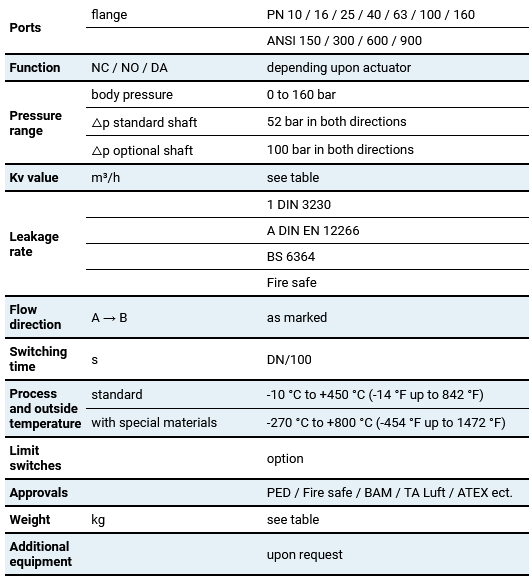

- Standard: -10 °C up to +450 °C (-14 °F up to 842 °F)
- With special materials: -270 °C up to +800 °C (-454 °F up to 1472 °F)
- Butterfly valve: 4-offset
- Pressure range: PN 0-160 bar
- Nominal diameter: DN 50-1800 mm
- Connection: flange
- Housing materials: Steel, stainless steel,
- Special materials: (Duplex, Inconel, Bronze)
Seat materials
- Inconel
- Others on request
Sealing materials
- Graphite / stainless steel, Inconel, stainless steel, PTFE
