Hakohav Valves

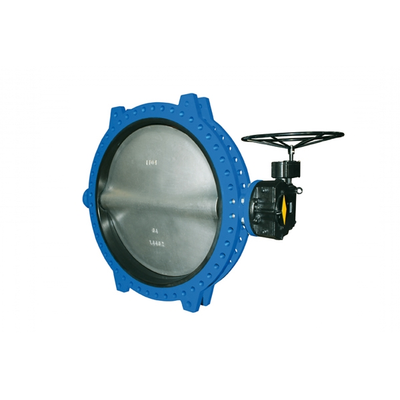

Hakohav - Model 116 -Double Flanged Centric Butterfly Valve
FromHakohav Valves
116 Double Flanged Centric Butterfly valve 14" Operation Bare Shaft Disc Ductile Iron Halar coated Seat EPDM vulcanized Shaft Duplex PN 6 Face to face acc. ISO 5752 (series 20)/ API 609/ BS 5155.
Most popular related searches
centric butterfly valve
butterfly valve
butterfly valve centric
flanged butterfly valve
corrosion prevention
valve operator
butterfly valve flange
gaskets
- Size: 14
- Operation: Bare Shaft
- Disc: Ductile Iron Halar coated
- Seat: EPDM
- Shaft: Duplex
- Pressure: PN 6
- According to: EN 593
- Face to face: ISO 5752 (series 20)/ API 609/ BS 5155
- Fully vulcanized liner seat guaranties seat stability, prevents corrosion and eliminates the need for a separate gasket
- Split shaft with no pins/bolts on disc with Square end ensures maximum torque transfer and prevents corrosion
- Special shaft bearing system for better torque figures
- Shaped disc for minimum friction with very low head loss
