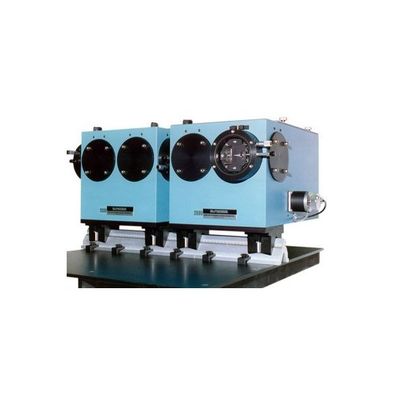

McPherson - Model 2035D -Double Monochromator for Additive or Subtractive Mode Operation
FromMcPherson
The Model 2035 focal length is 350-mm and the double spectrometer can be configured for additive/dual dispersion or non-additive / subtractive dispersion. Optically and mechanically coupled Czerny-Turner spectrometers are equipped with choice of ruled or holographic gratings to suit the application. Spectrally agile, the model 2035D features an all first surface optical system (Al+MgF2 coatings) for complete UV-VIS-NIR response.
Most popular related searches
- f/4.8 High Throughput Optics
- High Efficiency Broadband Al+MgF2 Coatings
- Precision Micrometer Adjustable Slits
- Gratings rotate about their apex
- Optical Design: Czerny-Turner Monochromator / Spectrometer
- Focal Length: 350mm
- Aperture Ratio: f/4.8 (NA 0.1)

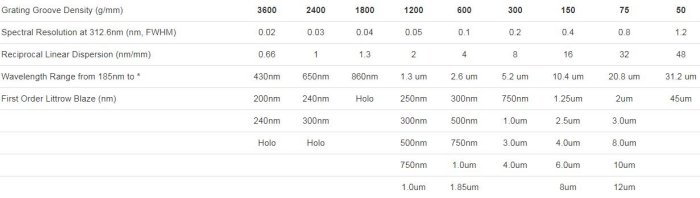

- Wavelength Range: refer to grating of interest for range
- Wavelength Accuracy: +/-0.2-nm (on counter, with 1200 G/mm grating)
- Wavelength Reproducibility: +/- 0.005 nm (with 1200 G/mm grating)
- Grating Size: 68 x 68mm, with turret or single grating holder
- Slit Locations: Axial and lateral with optional extra entrance and exit port selection mirrors
- Focal Plane: 25mm, multiply Dispersion by detector width to solve simultaneous range
