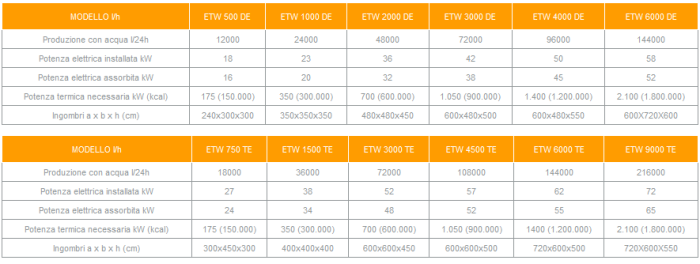

PF10 - Model ETW DE Series -Double or Triple Effect Evaporators

The ETW DE model is an evaporator of high energy efficiency. These evaporators, as the ETW ME series, exploit the thermal power produced by hot water or steam (or diathermic oil) during the evaporation phase and the one produced by water coming from closed circuit dry-coolers or evaporation towers during the condensation phase. Moreover, the thermal energy produced by the condensate during the first stage is used to supply a second evaporation phase. This model allows, consequently, to reduce more than 40% of thermal energy consumption in comparison with the similar single effect model.
