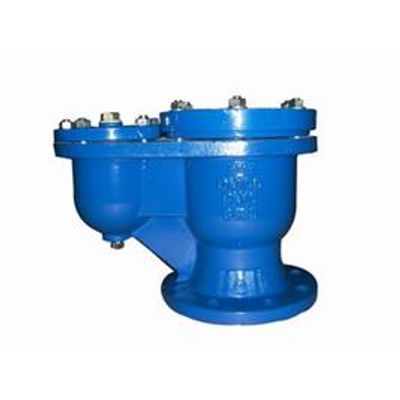

Jireh - Model JR-AC-01 -Double Orifice Automatic Air Valve

SHARE

The double ball automatic air valves are used for applications related to troubles with air pressure on seat 0.3 bar. The double ball air valves have three functions:

Most popular related searches
automatic air-valve
air valve
ball valve
workplace air
air release valve
piping design
relief valve
  • Discharge large amount of air during filling operations
  • Discharge small amount of air during working operations
  • Let air in during piping emptying operations
  • Design & manufacture: DIN 3352
  • Flanges: UNI EN 1092-1 PN 10-16-25
  • Installation: at the high part of pipelines
  • APPLICATIONS • Aqueducts • Irrigation plants
