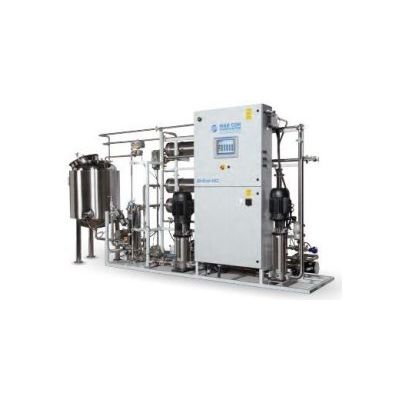

BioPure - Model HX2 -Double Pass Water Purification System
Mar Cor Purification offers the next generation central RO unit, the BioPure HX2. This direct feed double pass reverse osmosis system is designed specially to meet stringent international hemodialysis water requirements. The BioPure HX2 double pass system ensures the highest water quality, while the added feature of automatic hot water disinfection simplifies the bacteria control process.
Most popular related searches
water purification
stainless steel tube
water purification system
reverse osmosis system
variable frequency drive
water quality
water disinfection
reverse osmosis system engineering
feed water
VFD design
- Meets Health Canada & ANSI/AAMI/ISO 13959:2009 specifications
- Single skid, space saving design
- Direct feed double pass RO design with single pass capabilty
- Automatic Hot Water disinfection program, along with Semi-Automatic Chemical Cleaning and Disinfection programs
- Four (4) independent modes of disinfection: 1st Pass RO, 2nd Pass RO, Distribution and Point of Use
- All pharmaceutical grade 316L stainless steel tubing and
- All welds are visually inspected
- Tri-clamp connections aid in sanitary design
- Automatically adjusts product flow and reject flow based on feed water quality for water conservation.
- Two Pump VFD design for energy conservation
- Built in electric heater and low noise air compressor (40 dB) to minimize utility requirements
- Disinfection Holding Tank (100 US gallons) able to provide hot purified water to dialysis machines for complete disinfection
- Meets Analytical Norms to CAN/
- High Efficiency Motors with Variable Frequency Drive
- Allen-Bradley CompactLogix PLC
- NEMA 4/12 Main Control Panel

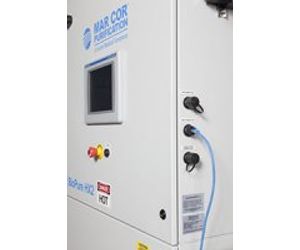

- Large 25.4 cm (10”) Allen-Bradley HMI colour touch screen for easy operation
- 10.9 cm (4.3”) colour remote touch screen station
- USB ports for data logging & optional printer hook up
- Ethernet compatible for remote monitoring and troubleshooting.
- Compliant to IEC/EN61326-1 – Electrical Emissions and ANSI/UL 61010-1, CAN/CSA C22.2 # 61010-1 Standard for Safety – Part 1.
