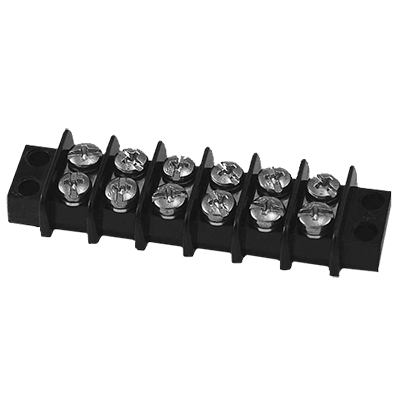

Marathon - Model 600A GP Series -Double Row Barrier Terminal Blocks
Double Row Terminal Blocks are available in many line-to-line spacings. Each series has many hardware and marking options available. Open back terminal blocks require an insulator strip to achieve voltage rating.
Most popular related searches
- A Kulka® Brand
- 15 amps
- 300 Volts AC/DC, Class B/C
- Base, phenolic, 150°C (UL RTI)
- Screws, steel, #6-32 phil-slot
- Terminals, plated brass
- Open back design (Insulator strip required for voltage rating - Reference)
- 1-22 poles at 3/8" centers
- Accepts lugs w/max width of .30"
- Bare wire range #12-#22 AWG
- UL recognized file no. XCFR2.E47811
- CSA certified file no. LR19766
- CE Compliant (IEC 60947-7-1)
- RoHS compliant
