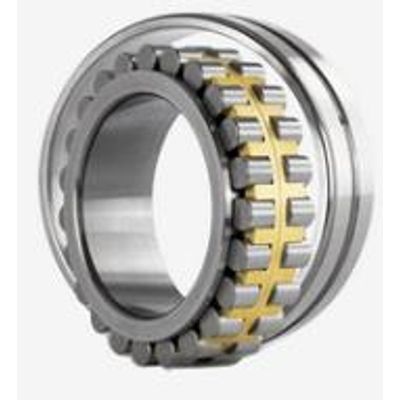

HuigongDouble Row Cylindrical Roller Bearing

SHARE

A Double Row Cylindrical Roller Bearing is a type of roller bearing designed to support high radial loads while operating efficiently under various conditions. It highlights two lines of round and hollow rollers orchestrated parallel to the bearing`s hub, which permits it to handle bigger loads compared to single-row plans. This bearing sort is perfect for applications requiring tall stack capacity and inflexibility, making it a well known choice in heavy-duty apparatus, particularly inside the metallurgical and mining businesses.

Most popular related searches
  1. Type: NNU and NN series cylindrical roller bearing. The NN design has an inner ring with two ribs and an outer ring without ribs. The NNU design has an inner ring without ribs and an outer ring with two ribs.
  2. Advantages: The advantages of the double-row cylindrical roller bearings are high stiffness and high precision.
  3. Application: They are usually used as main shaft bearings of precision machine tools.
  4. Size range: Inter diameter:200-1500mm
  5. Material: GCr15/GCr15SiMn/G20Cr2Ni4A
  6. Feature: The double-row cylindrical roller bearing is one separable type bearing and easy to assemble and disassemble.
  7. The double-row cylindrical roller bearing has two optional structures: cylindrical bore and tapered bore(suffix K).The tapered bore structure can allow the radial clearance to be adjusted when the bearing is installed. The double-row cylindrical roller bearing allows a certain axial displacement between the shaft and bearing housing and can be used as a non-locating bearing.
