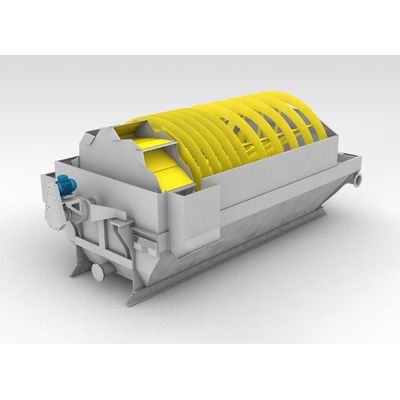

Binder - Model SANDEXX -Double Sand Trap Machine
Sand production in a Binder+Co SANDEXX double sand trap is efficient and energy-saving. Efficient because cleaning and dewatering are carried out in one operation, utilising a large pool area and gravity sedimentation. In addition to the low operating costs, the double sand trap from Binder+Co convinces with exceptionally low maintenance costs. The SANDEXX sand trap reliably dewaters and cleans sand mixtures over a wide range (quantity and composition). An optional flap in the discharge chute of the fine sand wheel allows the fine sand product to be mixed with the coarse fraction as desired. A robust design and long service life characterise this machine.
This is how sand and gravel refinement works
After entering the wear-protected inlet impact chamber, the turbidity flow is calmed. Under the effect of gravity, the sand particles sediment and, at the overflow weirs, an energy-saving separation of the blowdown components from the sand product is achieved. A correspondingly large pool area promotes sedimentation and the extraction of fine sand.
- Sand throughput (t/h): 30 - 215
- Water throughput rate for separation of slurry fractions: 160 - 340
- Trough length (mm): 9.100 - 11.100
- Trough width (mm): 2.700 - 4.200
- Pool area (m2): 21-40
- Power coarse sand wheel 4-pole (kW): 3-11
- Power fine sand wheel 8-pole (kW): 1,5-5,5
