The B925 is a double seat valve (mixproof) with an extremely modern and compact design. The valve directs and controls the flow of two different liquids simultaneously, guaranteeing total separation between the two to avoid any risk of contamination. Extremely effective in production plants for health-hygiene applications, this valve allows a reduction of single seat valves required and consequently optimizes the use of available installation space.
Bardiani Valvole
- Home
- Companies
- Bardiani Valvole
- Products
- Bardiani Valvole - Model B925 - Double ...

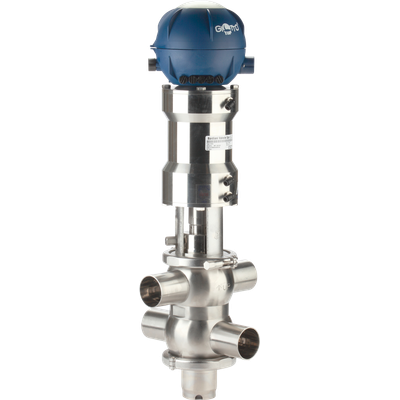

Bardiani Valvole - Model B925 -Double Seat Valve (Mixproof)
FromBardiani Valvole
The B925 is a modern and compact double seat valve designed for sanitary and hygienic applications. It allows simultaneous direction and control of two different liquid flows while ensuring complete separation to avoid contamination. This valve is particularly effective in production plants, requiring fewer single seat valves and optimizing installation space. The B925 offers several variants, including an aseptic double seat valve with a steam barrier (B925V), a double seat valve with an auxiliary washing circuit (B925B), and a double seat valve with both a steam barrier and an auxiliary washing circuit (B925A). The valve is certified by EHEDG, ATEX, and 3A 85-03 standards, confirming its compliance with stringent safety and hygiene requirements. Suitable for industries like food, beverage, milk-dairy, pharmaceuticals, biotech, animal/pet food, chemical, home care, and cosmetics, the B925 serves as a robust solution for critical fluid control applications.Most popular related searches
double-seated valve
balancing valve
hygienic valve
safety regulations
pressure seal
liquid separation
flow control
- Complete separation between two different products
- Maximum versatility for different applications and products
- Maximum hygiene (EHEDG and 3A certified)
- Easy maintenance without the need for special tools
- Sturdiness: valve bodies made from solid bar
- Balanced valve shutters made from solid bar
- Auxiliary external cleaning system (optional)
- Upper and lower lift control (optional)
- Serviceable actuator
- Maximum versatility thanks to the various configurations available
- Connections from DN15 to DN150 (from 3/4” to 6”)
- EPDM, FKM, HNBR seals
- Maximum pressure 10 bar
