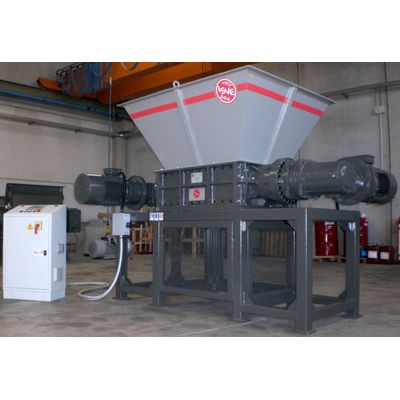

ISVE Recycling - Model B-70/100S -Double-shafts Shredder

• interchangeable hopper;
• loading and unloading conveyor belts;
• custom basement.

Multipurpose machine suitable for shredding an enormous number of waste materials- even very large. It can be introduced into a line to operate in continuous working.

Recommended for shredding pieces of wood, rags, plastic blocs leather, small tyres, paper, cardboard, packaging, polyethylene banding, plastic film, etc.

• Strong welded steel framework mounted on anti-vibrating feet;
• Support for barrel roller bearings with sealing system against dust and liquids;
• High thickness shafts with 25 special anti-wear steel cutters and 25 spacers to facilitate unloading of shred material:
• New graduated arrangement of cutter teeth for better taking and cut progress;
• N.2 epicyclic reduction gears with rotation axes parallel to the cutter axis;
• N. 2 motors of 18,5 KW for a total of 37 KW;
• Transmission system in oil bath with steel gears and pinions;
• mm. 1050X750  cutting chamber;
• Hopper in bolted sheet mteal for loading from the top;
• Base made in steel tubular equipped with protection nets or arranged for the belt.
• Weight: 5.200 kg.

• Electrical board built according to CEE rules and provided with power limiting device inverting cutters motion in case the working charge of the machine is higher than the programmed value;
• Main internal card for the control of all system peripherals devices;
• Emergency control functions for stopping the plant in the case of accidental introduction of ferrous material.
• Made to CE standards.
