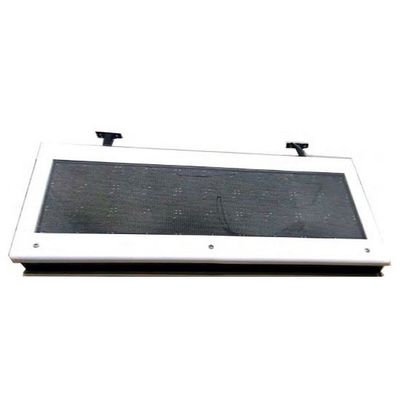

Chemito - Model DSPF48160A -Double Sided Platform Information Display Board
The main function of Platform Display Board is to display Expected Time of Arrival in Minutes, Arrival Time and Destination. In case there is no train during a certain span of day it will display information related to special events, public information items. It will show messages in emergency situations.
Most popular related searches
- Type of media SMD LED
- Color Amber Color
- Intensity 700 mcd
- Intensity control Automatic using light sensors
- Character height 160 mm
- Information to be displayed Destination, ETA / STA
- Matrix for each Line 16 X 160 or 48 X 160
- No. Of Lines per Board 3 Lines
- No. Of Sides Two (Double Face)
- Pitch 10 mm
- Viewing angle 110o Languages Displayed English, French & Regional
- Character size 160 mm X 90mm Approx.
- Data Interface
- Two separate Channels of Ethernet for each face of display for redundancy.
- Ingress Protection IP65
