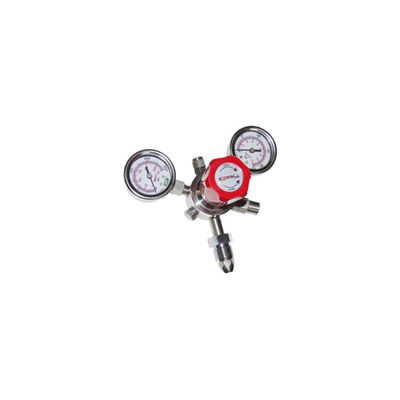

CSL - Model DSR Series -Double Stage Pressure Regulator - SS316/Brass
Cylinder pressure delivery regulator. 6 ports flexible configuration stable outlet pressure. Inbuilt inlet filter. Outlet pressure regulation by hand wheel. Stainless steel 316/316L body and bonnet for corrosive and toxic gases. Brass chrome plated body and bonnet for non-corrosive gases and mixtures up to grade 6.0. Body, bonnet and wet parts in inconel for gas services like pure H2S, HCl and Cl2.
Most popular related searches
pressure regulator
high-pressure sample system
corrosive gas
relief valve
toxic gas
gas pressure regulator
pressure filter
gas cylinder storage
calibration laboratory
laboratory system
- Component testing
- Calibration systems
- Laboratory pressure control
- High pressure sampling systems
- Service & test equipment
- Type: Double-stage
- Inlet pressure P1: max. 280 bar
- Outlet pressure P2: 2/4/10/20 bar
- Materials body regulator relief valve: see ordering info
- Valve seat: PTFE
- Diaphragm: SS316/Hastelloy
- Filter: SS 316L
- Inlets and outlets port: 1/4” NPT(F)
- Temperature range: -300C to +740C
- Leak rate (to atmosphere): 1x10-6mbarI/s He
- Leak rate (via seat): 1x10-6mbar I/s He
- Flow capacity: Cv = 0.06
- Weight: 2.0 kg
