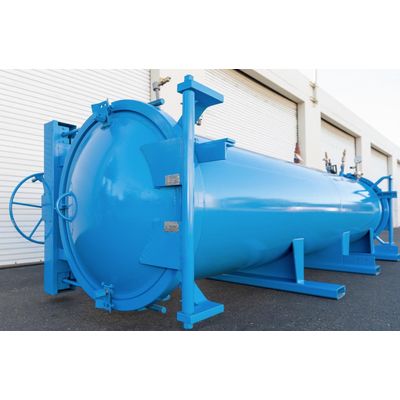

ChlorTainer - Double Ton Chlorine Gas High-Pressure Containment Vessel
ChlorTainer’s Double Ton is a high-pressure containment vessel built to accommodate two standard 1-ton chemical containers that are inserted end-to-end inside the vessel. If either of the containers should leak, all chemicals are contained within the vessel and processed at a normal rate, so no hazardous waste is generated. Scrubber systems, fans, pumps, tanks, and mechanical systems are not required. ChlorTainer addresses RMP considerations, enhances site security, and provides fail-safe protection for plant operators.
All vessels come with a 2-bolt chain drive door for ease of operation, a scale system, and an electric loader for effortless loading and unloading of chemical containers. We offer three Double-Ton vessel configurations to best handle your facility’s needs:
- Double Ton vessel uses one container for process and one for storage
- Twin Double Ton processes both 1-Ton containers simultaneously
- Dual Double Ton processes from only one container at a time and is designed for automatic switchover capabilities
Key benefits and features include:
- Eliminates the use for a scrubber system.
- Includes an electric loader - with a push of a button, your tons will easily go in and out.
- Leaves a smaller environmental footprint.
- Perfect for high-volume sites.
- Maintenance is less than $400 annually and can be completed in less than one hour.
ChlorTainer can be utilized for processing a variety of hazardous chemicals such as chlorine gas, sulfur dioxide, and anhydrous ammonia. All of our vessels are built to ASME code and can easily withstand the maximum pressure produced by a failed cylinder.
For optimal safety and security at water treatment plants and industrial facilities, ChlorTainer provides the best solution to store and process hazardous chemicals. With ChlorTainer, there is no need to build a room or enclose operators in a confined space. The vessels can be installed indoors, or outdoors with just overhead protection to provide shelter from director sunlight and rain.
ChlorTainer provides dependable operation with minimal annual maintenance and is designed to have a life expectancy of no less than 100 years. All ChlorTainer vessels are entirely manufactured in the USE and built with US steel.
- Design Pressure: 250 psig @ 300° F
- Minimum Design Metal Temperature: -20° F @ 250 psig
- Corrosion Allowance: 1/16 inch
- Radiograph Inspection:
- ASME Section V
- ASME Section VIII
- Hydro Test: 375 psig per UG-99
- Interior Paint: 2.5-3.0 Mils DFT Inorganic Zinc
- Exterior Paint
- 4-6 Mils DFT Epoxy
- 2 Mils DFT Polyurethane
- Welding: ASME Code Section IX
- Vessel Weight: 5,000 pounds
- Materials Used: Carbon Steel Vessel, Monel 400 Bossets
NOTE: Material used may vary when designed for other toxic gases
