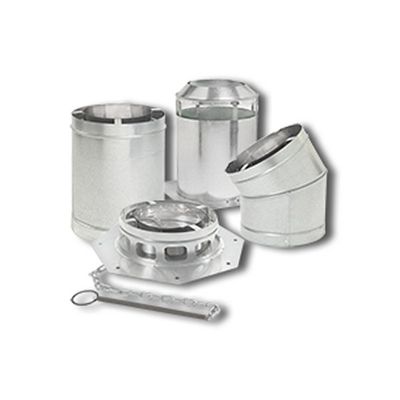

Metal-FabDouble Wall Air Insulated Chimney

SHARE

Air-Cooled Temp/Guard® products are tested and listed to UL 103 for continuous operating temperatures up to 1000°F and 1700°F intermittent.  Air-Cooled Temp/Guard features a rigid 430 stainless steel flue combined with a male to female slip connection secured with sheet metal screws.  Our one piece flue and casing design reduces installation time and cost with no field assembly required.

Most popular related searches
  • Application
  • For use with masonry fireplace applications.
  • Listings/Standards
    • NFPA 211
    • UL 103
  • Construction
  • Flue Material Specifications:
    • 8" - 12"/.015, 430 stainless steel
    • 14" - 16"/.024, 430 stainless steel
  • Casing Material Specifications: 8" - 16"/.018, galvanized steel
  • Diameters : 8" -16"
  • Clearances : 2" Minimum clearance to combustibles
