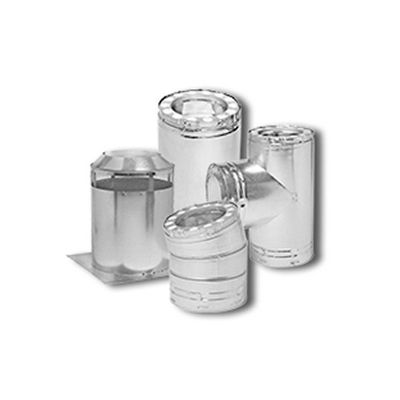

Metal-Fab Temp/Guard - Double Wall Insulated Chimney
FromMetal-Fab, Inc.
Temp/Guard All-fuel products, diameters 6"- 8" are tested and listed to UL 103HT for continuous operating temperatures up to 1000°F and 2100°F intermittent. Temp/Guard features a twist-lock connection that eliminates the need for sheet metal screws and aids in proper joint alignment. Temp/Guard utilizes a ceramic fiber blanket insulation that reduces “hot spots” and prevents insulation settling during transportation and installation, increasing product safety and reliability. Our factory-built chimneys have the smallest clearance to combustibles of 1.5" in the industry, reducing the chimney system footprint that saves on cost and time.
Most popular related searches
double-wall chimney
ceramic fiber blanket
ceramic fiber insulation
ceramic fiber
product safety
industrial chimney
NFPA standard
safety product
HVAC
gas standard
- Application : Factory-built double wall chimney for use with listed wood, coal, oil or gas-fired appliances.
- Listings/Standards :
- NFPA 211
- UL 103HT
- Construction
- Flue Material Specifications:
- 6" - 8"/.015, 430 stainless steel
- Casing Material Specifications:
- Galvanized/Stainless Steel : 6" - 8"/.018, galvanized; .015, 430 stainless steel
- Diameters : 6" -8"
- Clearances : 1-1/2" Minimum clearance to combustibles for 6"-8"
