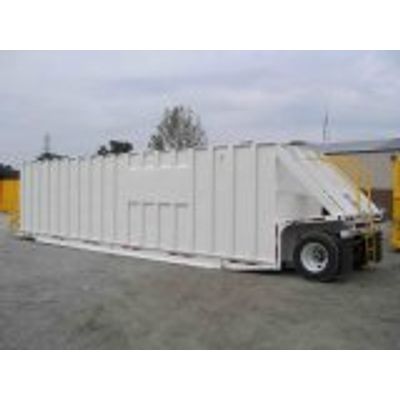

Double Wall Tanks
FromSuper Steel LLC
Closed Top \ Smooth Wall, Double Wall Configuration, “V” Bottom Floor, Total Capacity: 450 BBL (18,850 Gal.),Fluid Capacity: 390 BBL (16,400 Gal.).
Most popular related searches
flanged butterfly valve
ASTM A36
butterfly valve
wafer butterfly valve
double wall tank
frac tank
water testing
relief valve
vapor recovery
OSHA compliance
Technical Information
DW-452
PRODUCT DATA SHEET
DOUBLE WALL FRAC TANK
!!SABRE PATENTENED DUAL MANWAY HOUSING!!
DESIGN FEATURES
- Easy-to-Clean Design Reduces Cost
- Patented Dual Manway Housing for easy access to interior of tank
- “V”-Bottom Floor for Complete Clean-Out
- Smooth Wall Interior for Easy Cleaning
- No Corrugations
- No Internal Rods
ADDITIONAL SAFETY FEATURES
- Safety stairway eliminates need for workers to get on top of tank
- Grip Strut steps to prevent slipping
- Handrails and Stairways painted safety yellow for high visibility
- Safe Operation reminder decals applied
- Attached Strapping Charts
WEIGHTS AND MEASURES
- Capacity: 450 BBL (Entire Tank Capacity)390 BBL (Actual Fluid Capacity)
- Height: 9’-6” (Grade to Roof Deck) 8’-6” (Wall)
- Width: 8’-6” (Outside) 7’-2 1/2” (Inside)
- Length: 46’-0” (Front Nose to Rear) 37’-0” (Tank Body)
- Weight: 37,500 lbs.
STRUCTURAL DESIGN
- Exterior Floor: ¼”thick ASTM A36 carbon steel (V-bottom)
- Interior Floor: ¼”thick ASTM A36 carbon steel (V-bottom)
- Interior Sides/Ends: ¼” thick ASTM A36 carbon steel
- Exterior Sides/Ends: 3/16” thick ASTM A36 carbon steel
- Main Roof: ¼” thick ASTM A36 carbon steel(Single)
- Wall Posts: 3/16”x3”x6” ASTM A36 formed channel
- Roof Members: 3” Structural Channel
- Manways: (1) 22” Dia. Low-Profile - Top Buna-N Gasket
- Dual Manway Housing: (1) Patented 36” Dia. Manway Exterior x 22” Dia. Manway Interior w\Buna-N Gaskets
- Relief Valve: 16 oz./in2 pressure setting, 0.4 oz./in2 vacuum setting; Buna-N seal.
- Valves: 4”- wafer butterfly valve. Cast iron body, Buna-N seat & seals, 316 SS stem, Nylon coated ductile iron disk w/ plug and chain.
- Front Drain: 4”-150# flanged w\ butterfly valve
- Front Aux. Port: 4”-150# flanged w\ butterfly valve
- Rear Drain: 4”-150# flanged w\ butterfly valve
- Interstitial Drain: (2) - 2” Threaded w\ Plug Front & Rear
- Interstitial Test Port: (1) - 2” Threaded w\ Sight GlassFront
- Front Fill Port: 4”-150# flanged w\ Plug
- Roof Connections: (1)Vapor Recovery: 4”-150# Threaded Flange & Plug
- (1) Auxiliary Port: 4”-150# Threaded Flange & Plug
- (1)Gauging Port: 2” threaded w\ Sight Glass
- Rear Connections: (1) Auxiliary Port: 4”-150# Threaded Flange&Plug
- Front Stairway: 24” Bolt-On w\ Landing – OSHA Compliant
- Rear Stairway: 24” Access to Rear Platform w\ Fold-Up Ladder
- Axle: 77½” track \ 22,500# Capacity \ 5” Rd
- Suspension: Spring \ 3-LEAF SPRING \ HIGH-ARCH FLANGE MOUNT HANGERS \ ¾” SEAT 22,500# CAPACITY
- Tires: 11R22.5 \ 14-Ply
- Wheels: Steel \ Hub-Piloted
- Interior Blast: SSPC-SP-10 \ Near White Blast
- Interior Coating: Carboline Phenoline 310100% Solids \ High Performance Epoxy Coating20 – 30 Mils D.F.T.
- Exterior Blast: SSPC-SP-6 \ Commercial Blast
- Exterior Coating: Carboline Carbothane 8812 \ 8845 DTMHigh Gloss Polyurethane 3 – 5 Mils D.F.T.
- Steam Coil » Additional Aux. Ports
- HD Lifting Lugs » Additional Manways
- External Frac » ABS Brake System
- Internal Frac » DOT Light Package
- Gel Line » Stainless Steel (340 / 316)
- Jet Line » Custom Interior Coatings
- Float Gage » Custom Exterior Colors
- Feed Lines
- Tests Performed: Hydrostatic Water Test
- Electrical Function Test
- Brake System Test
To the best of our knowledge the technical data contained herein are true and accurate at the date of issuance and are subject to change without prior notice. No guarantee of accuracy is given or implied because variations can and do exist. NO WARRANTY OR GUARANTEE OF ANY KIND IS MADE BY MANITEX SABRE INC., EITHER EXPRESSED OR IMPLIED.
5420 E STATE RD 8 • KNOX, IN • 574-772-5380
