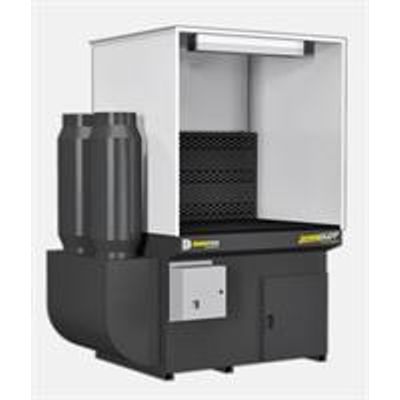

Diversitech - Model DD 3x4 -Downdraft Booth
FromDiversitech
The DD 3x4 downdraft clean-air booth features an auto self-cleaning system to remove and filter airborne pollutants while reducing maintenance requirements. The booth enclosure prevents smoke and fines from leaving the ventilated table surface and backdraft hood. All downdraft booths can be custom manufactured to suite your specific application requirements.
Most popular related searches
downdraft booth
OSHA regulations
airborne pollution
clean air
spark arrester
odor control
air cleaning
pollutant filtration
The 3’ X 4’ Downdraft Booth comes standard with a Nanofiber cartridge capable of removing particles 99.8% @ 0.5 micron. An optional metal mesh prefilter is available for applications producing sparks and improves surface velocity over the table.
- Automatic self-cleaning for easy maintenance
- Heavy-duty powder coated steel construction
- Complies with OSHA guidelines
- Flexible 42" x 48" enclosed worksurface
- Automatic Reverse-Pulse Self-Cleaning System
- High Capture Face Velocity (200fpm)
- 3.0HP TEFC Motor producing 4400 CFM of airflow
- Metal mesh spark arrestance prefilter
- High Efficiency Nanofiber Cartridges
- Rugged Steel Bar Surface Grating
