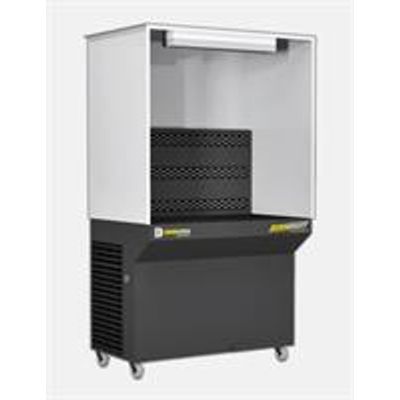

DiversiTech - Model DD 2’ X 4’ -Downdraft Booths
The DD 2x4 downdraft booth provides an all-in-one solution for the capture and collection of airborne particulate, overspray and fumes from many industrial applications. The table comes with a 48” high enclosure with side and back panels, a top plate, backdraft hood and light kit to contain contaminants and improve performance. The downdraft and backdraft suction insure that dust can be removed both on and high above the table surface for taller parts.
The 2’ X 4’ Downdraft bench features a high efficiency nanofiber filter with a rating of MERV 15 along with an optional 2" deep metal mesh spark arrestance pre-filter. The metal mesh pre-filter is washable while the main filter is cleanable with compressed air but must be replaced periodically.
- Automatic self-cleaning for easy maintenance
- Capture-at-source high above the work surface
- Complies with NFPA guidelines
- Flexible 32" x 48" worksurface
- Manual Push-button Reverse-Pulse Cleaning
- High Capture Face Velocity (200fpm)
- 1.5HP TEFC Motor producing 1500 CFM of airflow
- Washable reusable metal mesh pre-filter
- Low Cost Replacement Filters
- Interchangeable Gratings
